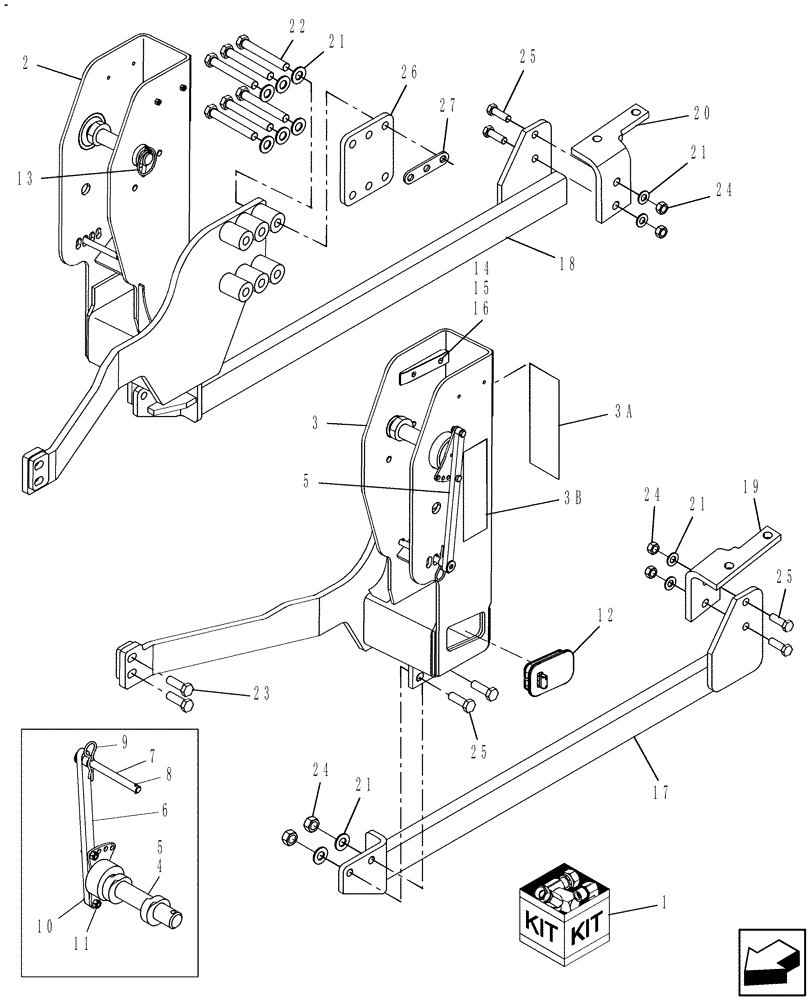

Запчасти Case IH L360 (002.03) - DIA KIT, MOUNT - FARMALL 45A/55A - 715782186

1

715782186

DIA KIT, TRACTOR

Mount Kit, Includes: Installation Instructions & Ref. 2-27

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84277402

BRACKET

Mount, RH

1шт.

3

84297300

BRACKET

Mount, LH Includes: Ref. 3A & 3B

1шт.

3a

86979962

WARNING DECAL

Loader Safety

1шт.

3b

86979960

DANGER DECAL

Loader Safety

1шт.

4

87663543

CAM

RH

1шт.

5

87663542

CAM

LH

1шт.

6

87353820

LEVER

2шт.

7

87353821

LEVER

Handle

2шт.

8

80033778

COTTER PIN,11/32" x 3 1/4" x 0.148", CAD or ZNP

2шт.

9

138-69

LOCK PIN,5/32" x 1/2", Slotted

2шт.

10

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

11

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

12

87025852

COVER

2шт.

13

285312

PIN

2шт.

14

87360897

GUIDE

2шт.

15

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

16

280129

NUT,1/4"-20

4шт.

17

87033241

FRAME

LH

1шт.

18

87033240

FRAME

RH

1шт.

19

84277419

BRACKET

LH Rear Brace

1шт.

20

84277423

BRACKET

RH Rear Brace

1шт.

21

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

24шт.

22

15981821

SCREW,Hex, M16 x 1.5 x 120mm, Cl 8.8

12шт.

23

87015545

BOLT,Hex, M16 x 70mm, Cl 10.9

4шт.

24

392530

NUT,M16, Cl 10

12шт.

25

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

26

84277416

PLATE

Spacer Mounting

2шт.

27

84277417

PLATE

Spacer

2шт.

28

86529976

BOLT,Hex, M16 x 35mm, Cl 10.9

1шт.

Not Illustrated

1шт.

29

86000441

NUT,M16 x 2.0, Cl 8

1шт.

Not Illustrated

1шт.
