Запчасти Case IH L360 (017) - THIRD FUNCTION REAR REMOTE HOSE KIT

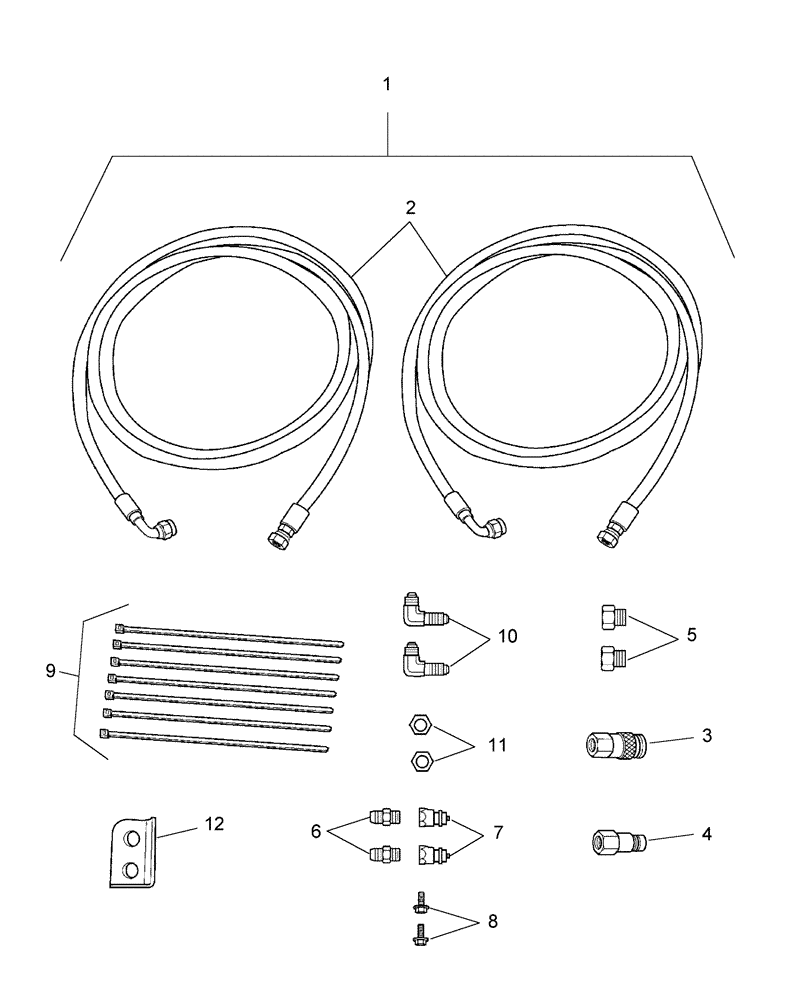

Схема запчастей Case IH L360 - (017) - THIRD FUNCTION REAR REMOTE HOSE KIT
7
10
9
4
3
2
11
8
6
12
1
5

Артикул

Название

Примечание

Количество

1

716662046

DIA KIT, TRACTOR

Third Function Rear Remote Hose Kit, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87311349

FLEXIBLE HOSE

HOSE

2шт.

3

86537659

COUPLING, QUICK, FEM

1шт.

4

86537658

QUICK MALE COUPLING

1шт.

5

86537648

ADAPTER

2шт.

6

132341

HYD CONNECTOR,3/4" - 16 JIC x 1/2" - 14 NPT

2шт.

7

9801618

QUICK MALE COUPLING,1/2" - 14

2шт.

8

570821

SELF-TAP SCREW,Hex Flng, 5/16" - 18 x 5/8"

2шт.

9

529070

CABLE TIE,368.3mm L

CABLE STRAP

7шт.

10

86513091

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

11

595460

BHD LOCK NUT,7/8" - 14

2шт.

12

86603045

BRACKET

BRACKET

1шт.

Выбрано товаров: 13
