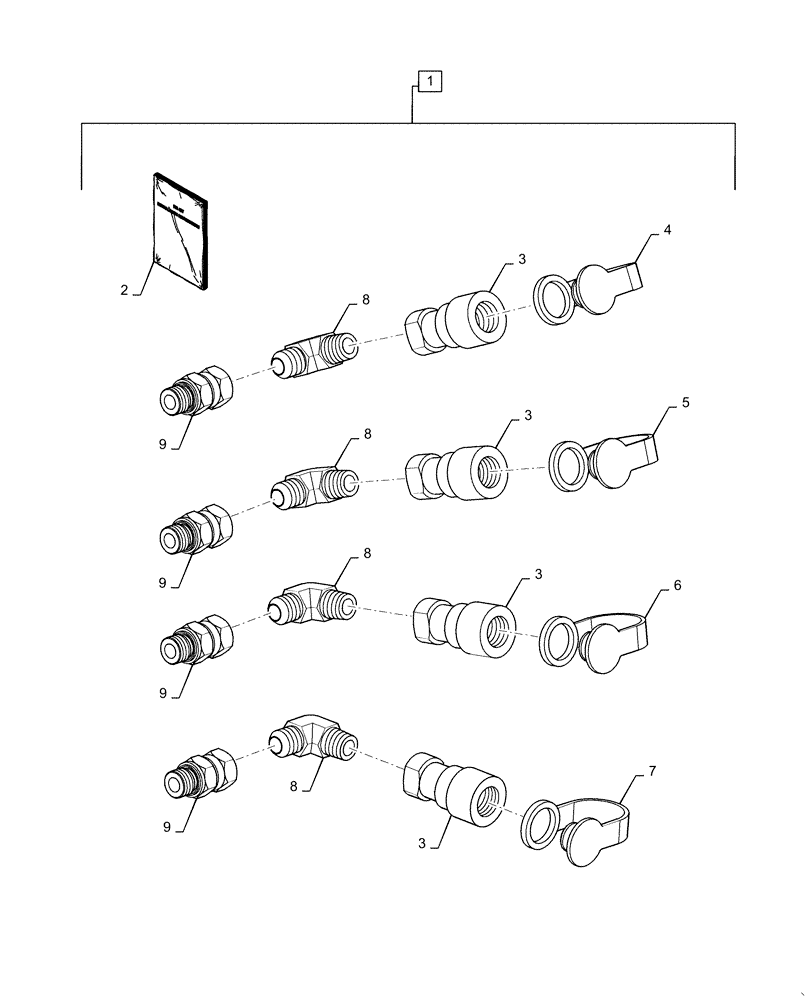

Запчасти Case IH L350A (88.100.35[01]) - DIA KIT, MID MOUNT VALVE KIT, HYD. CONNECTOR (88) - ACCESSORIES

1

47608158

KIT

MMV Connectors, Incl 2 - 9

1шт.

2

47608157

INSTRUCTION

Installation

1шт.

3

9846343

COUPLING,3/8" NPTF

4шт.

4

86597758

PLUG,29mm OD x 246mm L

Yellow

1шт.

5

86597757

PLUG,29mm OD x 246mm L

Green

1шт.

6

86597754

PLUG,29mm OD x 246mm L

Red

1шт.

7

86597755

PLUG,29mm OD x 246mm L

Blue

1шт.

8

76351

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8"-18, NPTF

2шт.

9

47601140

HYD CONNECTOR,3/4"-16, Fem Sw, 37 Degree Fl x 3/8"-19, Male BSPP

4шт.
