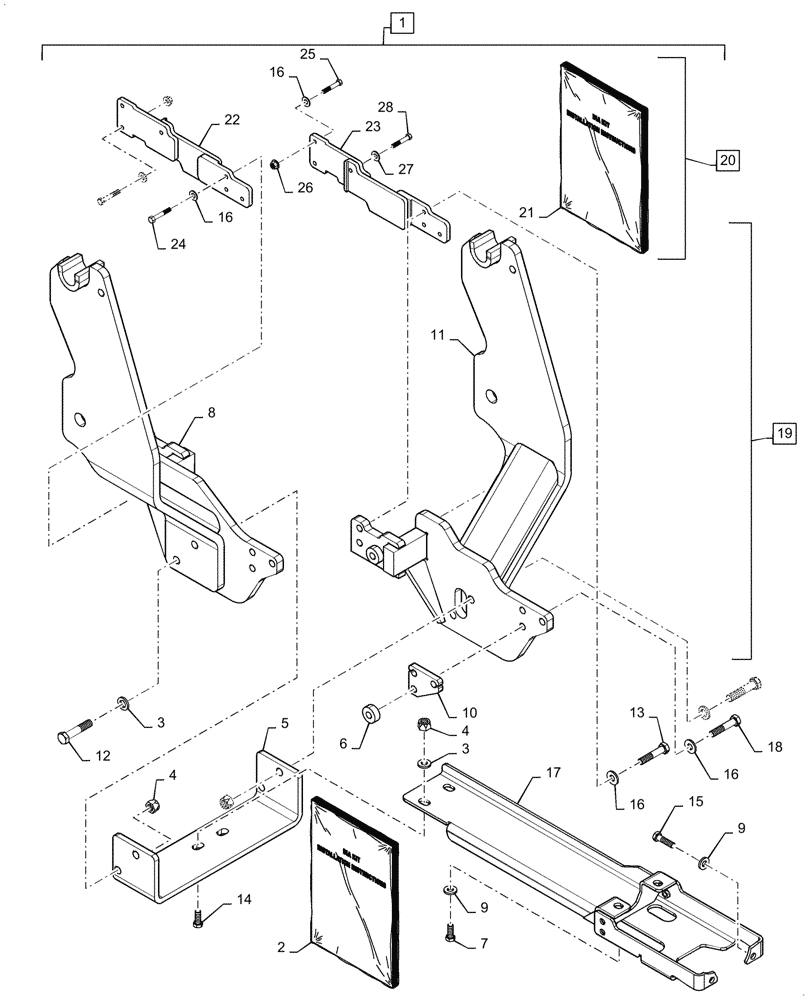

Запчасти Case IH L350A (39.100.020) - VAR - 713696046 - SUBFRAME MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

47870267

KIT

Loader Mount Assy, Incl 2 - 18

1шт.

2

47943645

INSTRUCTION

Manual

1шт.

3

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

4

86512555

NUT,M16 x 2, Cl 10

6шт.

5

47633860

PLATE,662mm L

1шт.

6

47888864

SPACER,16mm ID x 38.1mm OD x 12mm Thk

1шт.

7

87015736

BOLT,M12 x 1.75 x 37.68mm, Cl 10.9

4шт.

8

47870272

MOUNT

Loader, LH

1шт.

9

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

10

47876117

SPACER,72.5mm W x 90mm L x 12.7mm Thk

1шт.

11

47870269

MOUNT

Loader, RH

1шт.

12

11119437

BOLT,Hex, M16 x 75, 10.9

4шт.

13

16215021

SCREW,Hex, M14 x 1.5 x 70mm, Cl 8.8

6шт.

14

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

2шт.

15

86639031

BOLT,Hex, M12 x 45mm, Cl 10.9, Full Thd

2шт.

16

14408

WASHER,0.56" ID x 1.25" OD x 0.13" Thk

22шт.

17

47633764

BRACKET

Belly Pan

1шт.

18

86589011

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9, Full Thd

6шт.

19

47870268

KIT

Loader, Kit, Incl 8, 11

1шт.

20

48111122

Mount Support, Incl 16, 21 - 28

KIT

1шт.

21

48129420

Manual

INSTRUCTION

1шт.

22

48100357

Frame Support, LH

BRACKET

1шт.

23

48100358

Frame Support, RH

BRACKET

1шт.

24

15977831

SCREW,Hex, M14 x 1.5 x 85mm, Cl 10.9

6шт.

25

86509598

BOLT,Hex, M14 x 70mm, Cl 8.8

4шт.

26

48152215

M14, Cl 8

NUT

4шт.

27

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

1шт.

28

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.
