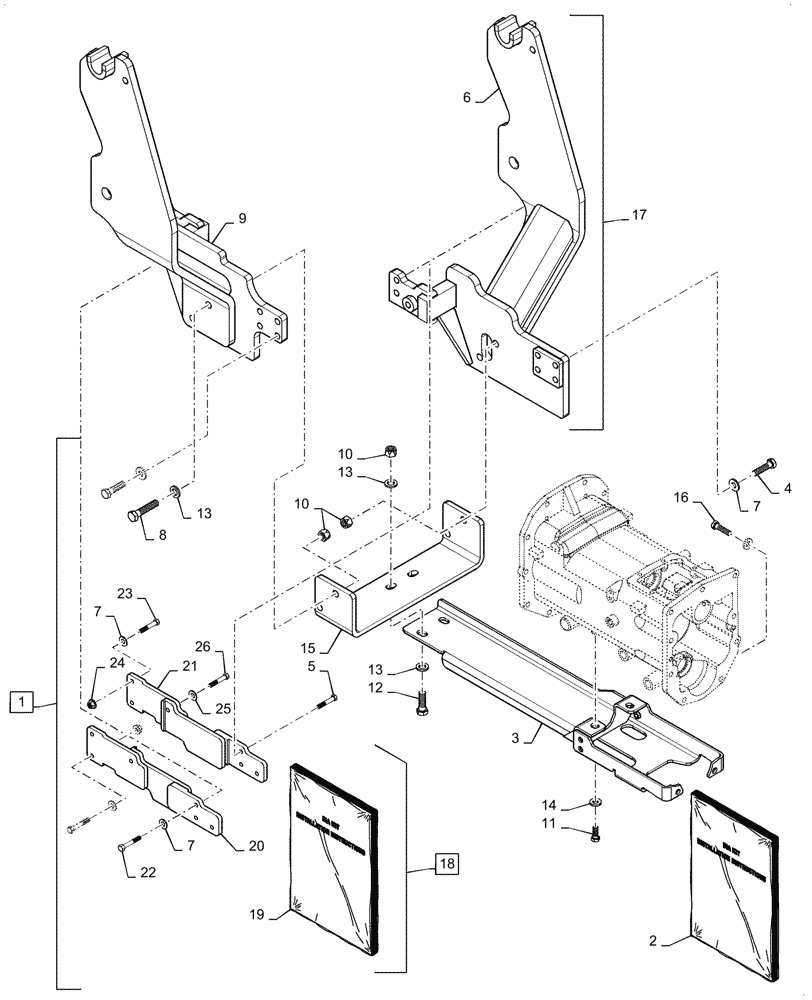

Запчасти Case IH L350A (39.100.010) - VAR - 713696016 - SUBFRAME MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

47753761

KIT

Loader Arm Assy, Incl 2 - 26

1шт.

2

47761928

INSTRUCTION

Manual

1шт.

3

47633764

BRACKET

Lower

1шт.

4

86589011

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9, Full Thd

6шт.

5

16215021

SCREW,Hex, M14 x 1.5 x 70mm, Cl 8.8

6шт.

6

47753763

MOUNT

Loader, RH

1шт.

7

14408

WASHER,0.56" ID x 1.25" OD x 0.13" Thk

22шт.

8

11119437

BOLT,Hex, M16 x 75, 10.9

4шт.

9

47753765

MOUNT

Loader, LH

1шт.

10

86512555

NUT,M16 x 2, Cl 10

6шт.

11

87015736

BOLT,M12 x 1.75 x 37.68mm, Cl 10.9

2шт.

12

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

2шт.

13

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

14

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

15

47633860

PLATE,662mm L

1шт.

16

86639031

BOLT,Hex, M12 x 45mm, Cl 10.9, Full Thd

2шт.

17

47753762

MOUNT

Loader, Kit, Incl 6, 9

1шт.

18

48111122

Mount Support, Incl 7, 19 - 26

KIT

1шт.

19

48129420

Manual

INSTRUCTION

1шт.

20

48100357

Frame Support, LH

BRACKET

1шт.

21

48100358

Frame Support, RH

BRACKET

1шт.

22

15977831

SCREW,Hex, M14 x 1.5 x 85mm, Cl 10.9

6шт.

23

86509598

BOLT,Hex, M14 x 70mm, Cl 8.8

4шт.

24

48152215

M14, CL 8

NUT

4шт.

25

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

1шт.

26

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.
