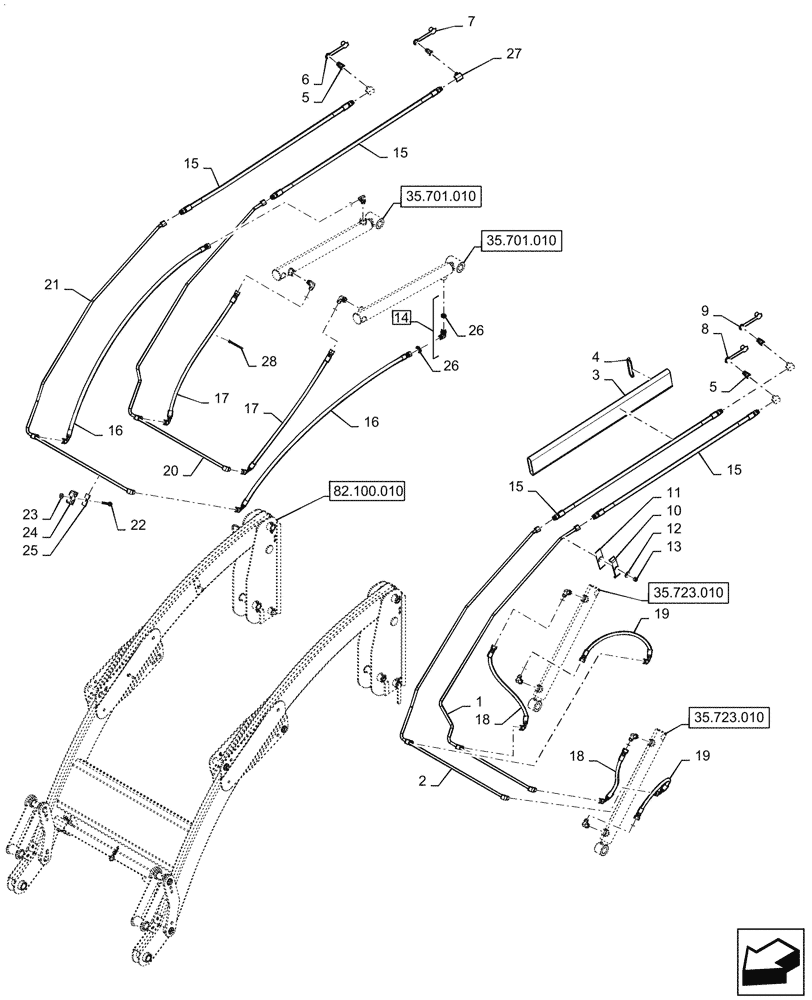

Запчасти Case IH L350A (35.702.020) - BOOM HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

1

87520524

HYD TUBE,.5" OD

Bucket Cylinder Base End

1шт.

2

48029399

HYD TUBE

Bucket Cylinder Rod End

1шт.

3

47407014

SLEEVE,120mm OD x 1830mm L

1шт.

4

323597

CABLE TIE,165mm OAL x 9mm Thk

8шт.

5

9846344

QUICK MALE COUPLING,3/8" NPTF

4шт.

6

86597752

DUST CAP,23mm OD x 255mm L

Green

1шт.

7

86597753

DUST CAP,23mm OD x 255mm L

Yellow

1шт.

8

86597750

DUST CAP,23mm OD x 255mm L

Red

1шт.

9

86597751

DUST CAP,23mm OD x 255mm L

Blue

1шт.

10

86571694

CLAMP

2шт.

11

765394

PAD,19.8mm ID x 31.8mm W x 101.6mm L

2шт.

12

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

13

9637692

NUT,3/8"-16, Gr B

2шт.

14

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 26

8шт.

15

47359984

HYDRAULIC HOSE,12.7mm ID x 2032mm L

12.7mm ID x 2032mm L

4шт.

16

87538057

HOSE ASSY.,9.53mm ID x 711.2mm L, SAE 100R17

Bucket Cylinder Base End

2шт.

17

87538059

HOSE ASSY.,9.53mm ID x 711.2mm L, SAE 100R17

Bucket Cylinder Rod End

2шт.

18

87538063

HOSE ASSY.

Lift Cylinder Rod End

2шт.

19

87538061

HOSE ASSY.,9.53mm ID x 1143mm L, SAE 100R17

Lift Cylinder Rod Base

2шт.

20

87520527

HYD TUBE,.5" OD

Lift Cylinder Base End

1шт.

21

87520526

HYD TUBE,.5" OD

Lift Cylinder Rod End

1шт.

22

87497919

SELF-TAP SCREW,1/4” x 1.75” L

4шт.

23

86603118

PUSH-ON NUT,1/2” OD x 5/64” Thk

4шт.

24

625822

CLAMP,1/2" Tube

4шт.

25

86509354

PLATE,9/32" ID x 3/4" W x 2" L

4шт.

26

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

16шт.

27

86521965

ELBOW,90 Degree, 3/8"-18 Female x 3/8"-18 Male

4шт.

28

529070

CABLE TIE,368.3mm L

2шт.
