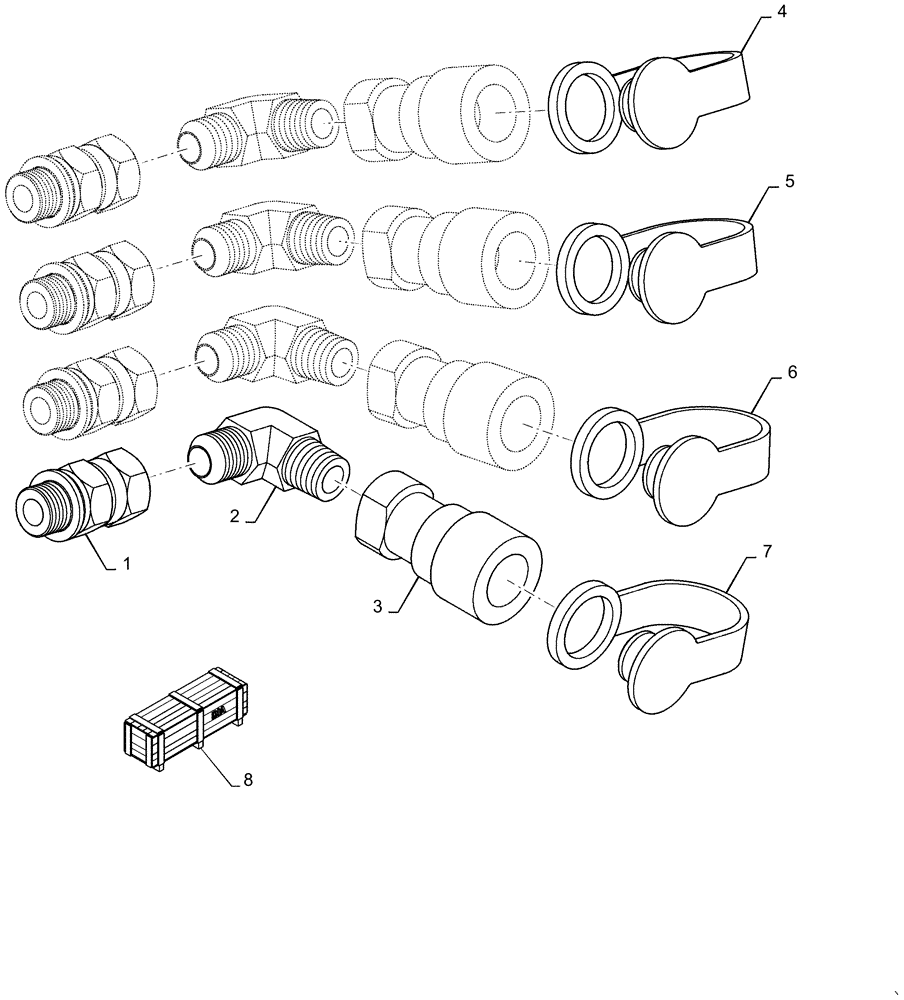

Запчасти Case IH L350A (35.525.010) - MID MOUNT VALVE KIT, HYD. CONNECTOR (35) - HYDRAULIC SYSTEMS

1

47671728

HYD CONNECTOR,3/8" - 19 BSPP x 3/4" - 16 JIC

4шт.

2

76351

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8"-18, NPTF

4шт.

3

9846343

COUPLING,3/8" NPTF

4шт.

4

86597758

PLUG,29mm OD x 246mm L

Dust, Yellow

1шт.

5

86597757

PLUG,29mm OD x 246mm L

Dust, Green

1шт.

6

86597754

PLUG,29mm OD x 246mm L

Dust, Red

1шт.

7

86597755

PLUG,29mm OD x 246mm L

Dust, Blue

1шт.

8

47608158

KIT

DIA, Mid Mount Valve Connector, Incl 1 - 7, Instruction Sheet P/N 47672785

1шт.
