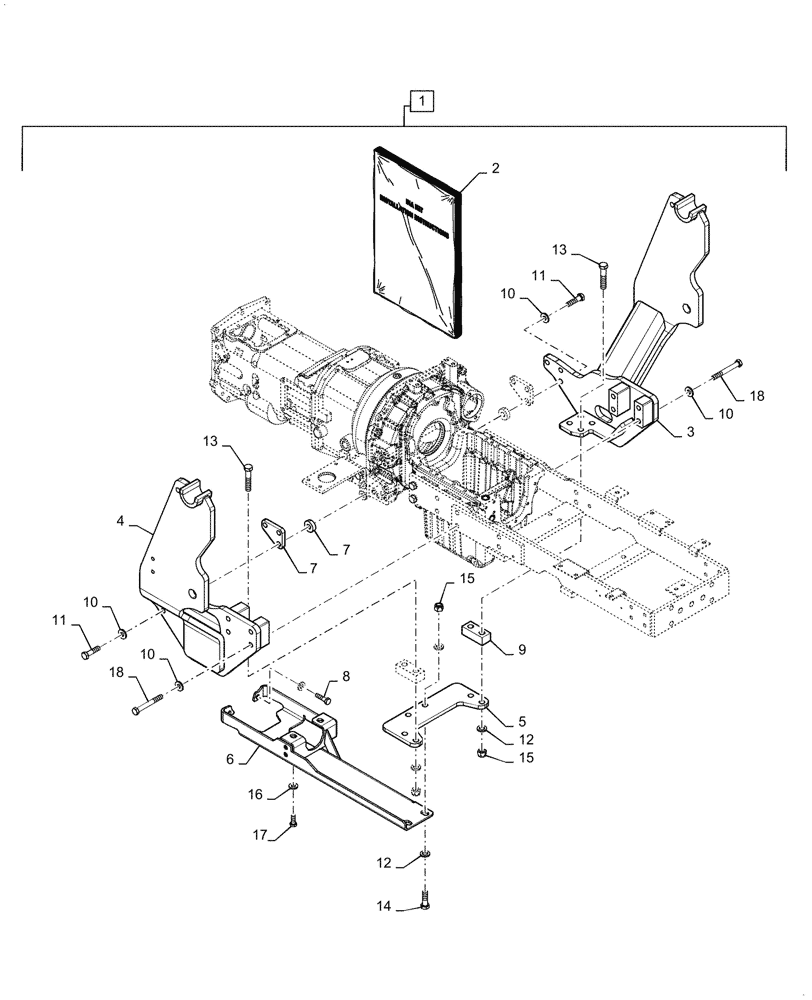

Запчасти Case IH L350A (39.100.030) - VAR - 727101036 - SUBFRAME MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

48017608

KIT

Loader Mount Assy, Incl 2 - 18

1шт.

2

48001635

Manual

INSTRUCTION

1шт.

3

48050958

LH

MOUNT

1шт.

4

48050960

RH

MOUNT

1шт.

5

48054072

BRACKET

Cross Tie

1шт.

6

48000723

BRACKET

Belly Pan

1шт.

7

48000813

SPACER,16mm ID x 38.1mm OD x 12mm Thk

1шт.

Cab Only

1шт.

7

48052589

12.7mm Thk

SPACER

1шт.

ROPS Only

1шт.

8

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

9

48054073

SPACER

Bar, 38.1mm W x 30mm Thk x 88.9mm L

2шт.

10

12644931

WASHER,14.4mm ID x 32mm OD x 4mm Thk

14шт.

11

86589011

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9, Full Thd

6шт.

12

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

13

86577946

BOLT,Hex, M16 x 80mm x 10.9

4шт.

14

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

15

86512555

NUT,M16 x 2, Cl 10

6шт.

16

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

17

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

18

47633371

BOLT,M14 x 110mm L, Cl 10.9

8шт.
