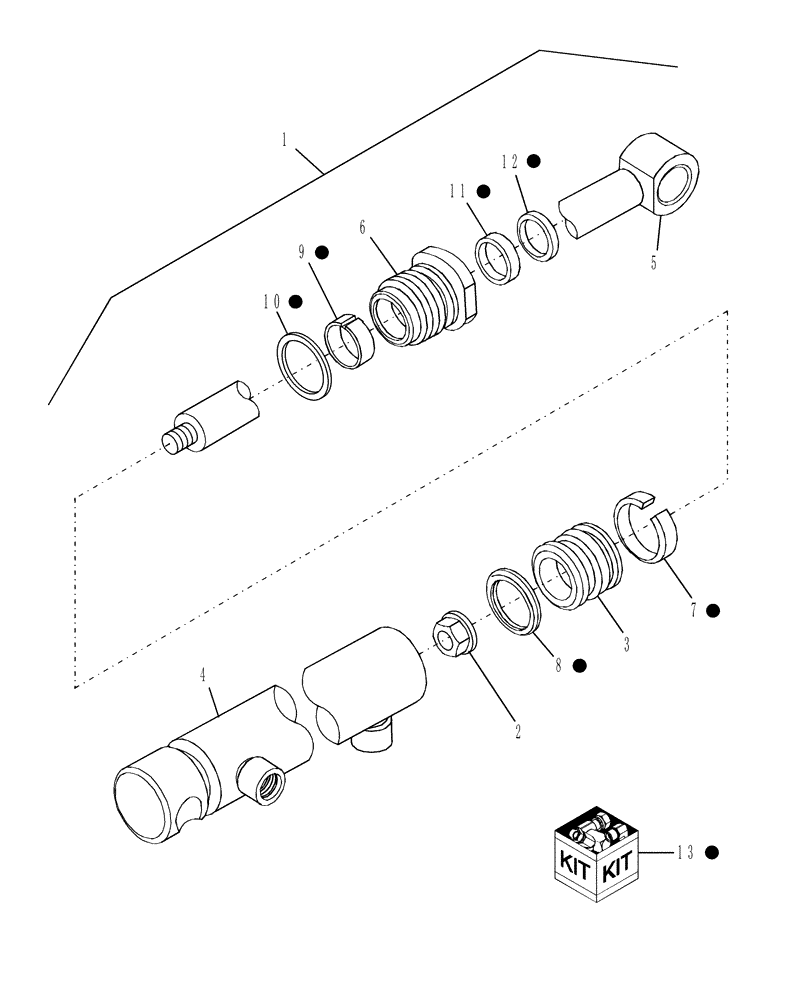

Запчасти Case IH L350 (004) - LIFT CYLINDER (00) - COMPLETE MACHINE

1

87399667

CYLINDER,Double Acting, 34.92mm Rod, 520mm Stroke

Lift

1шт.

Manufacturer's Production Date Stamp Located Middle of Cylinder Tube.Stamp Includes Date Code ( week / year ).

1шт.

2

280724

LOCK NUT,3/4" - 16

1шт.

3

87311861

PISTON

1шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

87311893

ROD

1шт.

6

87311859

HEAD

1шт.

7

NSS

NOT SOLD SEPARAT

Guide Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Piston Seal

1шт.

9

NSS

NOT SOLD SEPARAT

Guide Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Dual Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Rod Seal

1шт.

12

NSS

NOT SOLD SEPARAT

Wiper Seal

1шт.

13

87311857

SEAL KIT

1шт.
