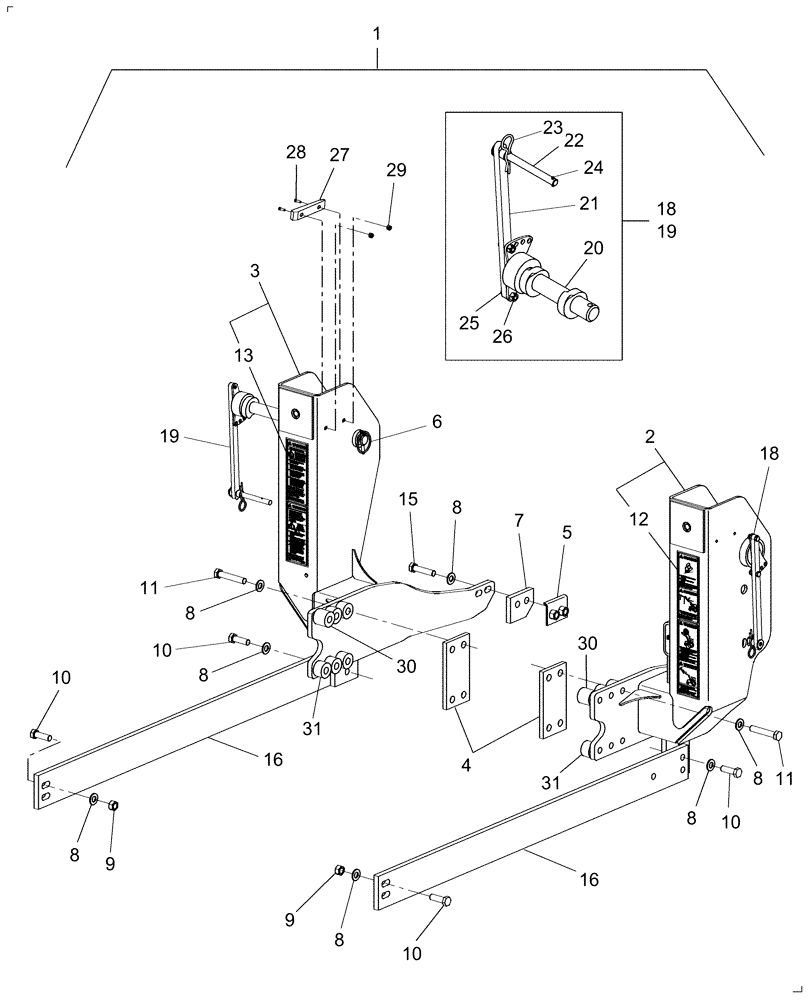

Запчасти Case IH L350 (002) - MOUNT KIT - 717652006, 717652016 & 715783016 (00) - COMPLETE MACHINE

1

717652006

DIA KIT, TRACTOR

Mount Kit, Includes: Installation Instructions & Ref. 2-31

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

1

717652016

DIA KIT, TRACTOR

Mount Kit, Includes: Installation Instructions & Ref. D35,DX35,D40,DX40,D45,DX45, FARMALL 40, FARMALL 45 & FARMALL 50 ROPS,CAB, Gear & HST Models. Boomer 3040,3045,3050, T2310,T2320,T2330, T1530

1шт.

1

715783016

DIA KIT, TRACTOR

Mount Kit, Includes: Installation Instructions & Ref. 2-31, ADVANCED TRANSMISSION FARMALL 40, FARMALL 45 & FARMALL 50

1шт.

2

87485106

MOUNTING PARTS

Mount, RH, Dark Gray

1шт.

Included in 717652006 Mount Kit

1шт.

2

84229674

MOUNTING PARTS

Mount, RH, Dark Gray

1шт.

Included in 715783016 Mount Kit

1шт.

Included in 717652016 Mount Kit

1шт.

3

87485105

MOUNTING PARTS

Mount, LH

1шт.

Included in 717652006 Mount Kit

1шт.

Included in 715783016 Mount Kit

1шт.

Included in 717652016 Mount Kit

1шт.

4

86578541

PLATE

2шт.

5

86579826

ANGLE

2шт.

6

A61560

LOCK PIN

2шт.

7

86589698

PLATE

Spacer

2шт.

7

86607952

PLATE

Spacer, 2WD Only

2шт.

Not Illustrated

1шт.

8

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

24шт.

9

829-1416

NUT,M16, Cl 10

8шт.

10

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

11

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

12шт.

12

86589568

DANGER DECAL

DANGER Loader

1шт.

13

86589569

DECAL

WARNING Loader Safety

1шт.

15

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

16

86836801

BAR

2шт.

Included in 717652006 Mount Kit

1шт.

16

87695837

FRAME

Dark Gray

1шт.

Included in 715783016 Mount Kit

1шт.

18

0C

ORDER COMPONENTS

Cam RH

1шт.

19

0C

ORDER COMPONENTS

Cam LH

1шт.

20

87663543

CAM

RH (Solid)

1шт.

Included in 715783016 Mount Kit

1шт.

Included in 717652016 Mount Kit

1шт.

Used With 717652006 Mount Kit

1шт.

20

87663542

CAM

LH (Solid)

1шт.

Included in 717652016 Mount Kit

1шт.

Used With 717652006 Mount Kit

1шт.

Included in 715783016 Mount Kit

1шт.

21

87353820

LEVER

Handle

2шт.

22

87353821

LEVER

Cam

2шт.

23

80033778

COTTER PIN,11/32" x 3 1/4" x 0.148", CAD or ZNP

2шт.

24

138-69

LOCK PIN,5/32" x 1/2", Slotted

2шт.

25

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

26

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

27

87360897

GUIDE

2шт.

28

280641

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

29

20356

NUT,1/4"-20, GB

4шт.

30

87389754

SPACER

2шт.

31

87389755

SPACER

2шт.
