Запчасти Case IH L350 (011) - QUICK-ATTACH ADAPTER PLATE - 716653156 & 716653186 (00) - COMPLETE MACHINE

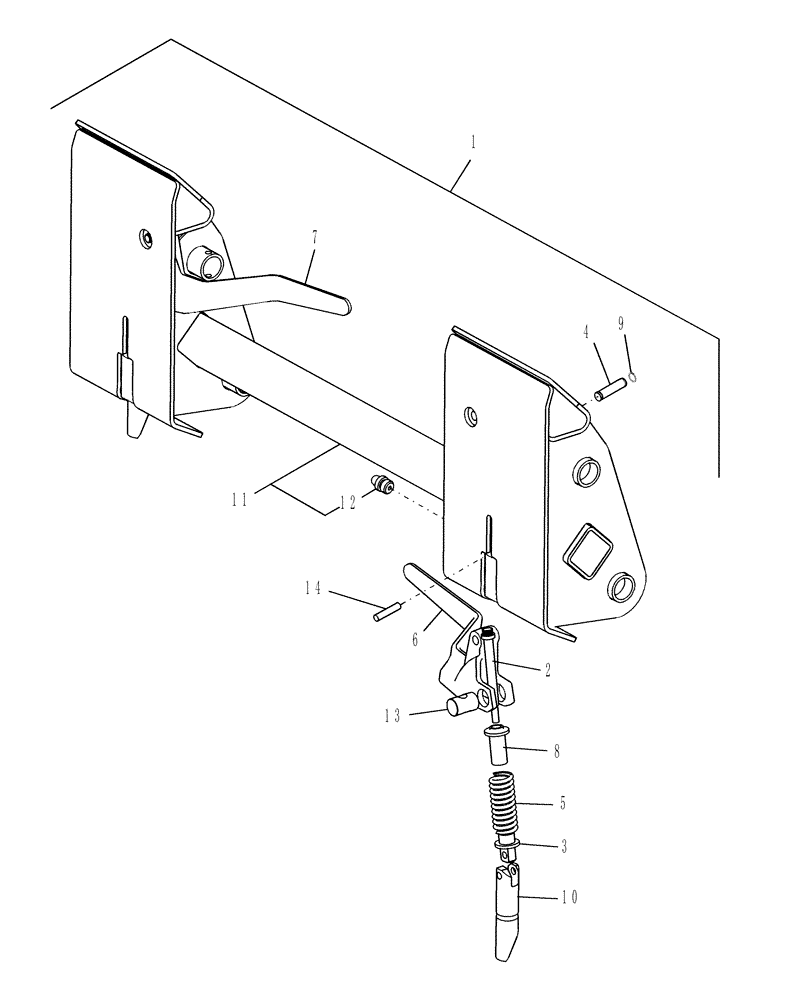

Схема запчастей Case IH L350 - (011) - QUICK-ATTACH ADAPTER PLATE - 716653156 & 716653186 (00) - COMPLETE MACHINE
9
7
6
11
5
3
12
2
4
10
14
8
1
13

Артикул

Название

Примечание

Количество

1

716653156

DIA KIT, TRACTOR

Quick-Attach Face Plate Includes: Ref. 2-14 Refer to Fig. 011 for Pin Used

1шт.

1

716653186

DIA KIT, TRACTOR

Quick-Attach Adapter Plate Includes: Ref. 2-14 & also Ref. 8 84153774 shown on Fig. 011

1шт.

2

86506112

12 PT SCREW,3/8" - 16 x 5" L

Cap, 12 Pt. Hd., Shoulder, G8, 3/8"-16 x 5"

2шт.

3

86510869

PIN,22.20mm OD x 43.6mm L

2шт.

4

86538563

PIN,12.7mm OD x 60.6mm L

2шт.

5

86610167

SPRING,Compression, 35.15mm OD x 101.6mm L

2шт.

6

86591458

HANDLE

LH

1шт.

7

86591460

HANDLE

RH

1шт.

8

86610166

GUIDE,13.5mm ID x 22mm OD x 46.6mm L

Spring

2шт.

9

86571009

SNAP RING,#50, Ext

4шт.

10

86575348

PIN,31.75mm x 142mm L

Latch

2шт.

11

NSS

NOT SOLD SEPARAT

Adapter Plate

1шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

13

9829733

PIN,25.4mm OD x 39mm L

2шт.

14

438-12428

LOCK PIN,3/8" x 1 3/4", Slotted

2шт.

Выбрано товаров: 15
