1
719849056

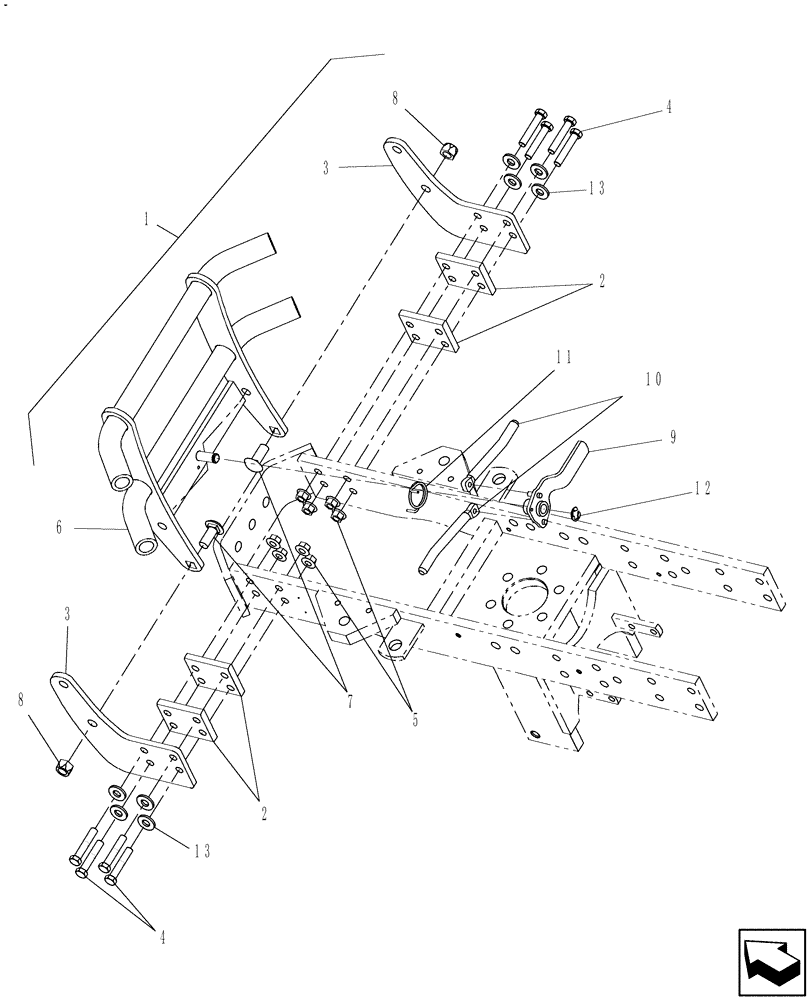

DIA KIT, TRACTOR
Grill Guard Includes: Ref. 2-13
1шт.
2
86404935
BRACKET
Spacer Plate, 1/2"
4шт.
3
86404938
BRACKET
Grill Guard Mounting
2шт.
4
43158
BOLT,Hex, M12 x 80mm, Cl 8.8
8шт.
5
9804279
FLANGE NUT,Hex, M12, Cl 8
8шт.
6
86405012
GUARD
1шт.
7
86595832
CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd
2шт.
8
86000441
NUT,M16 x 2.0, Cl 8
2шт.
9
86400478
HANDLE
1шт.
10
86400479
GUARD
2шт.
11
86558147
SPRING
1шт.
12
505291
LOCKING RING,#62, .480" Dia, E-Type
1шт.
13
140046
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
8шт.
