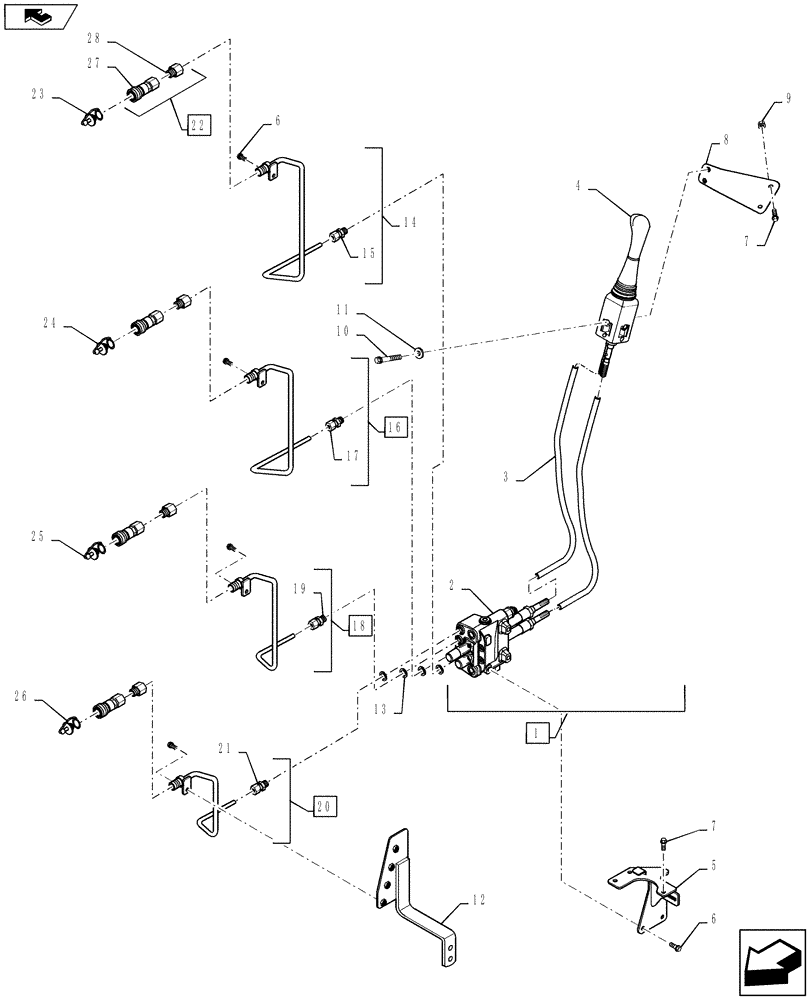

Запчасти Case IH L350 (008) - MID-MOUNT HYDRAULIC CONTROL VALVE - MT40236239 - FARMALL 40B/50B (00) - COMPLETE MACHINE

1

MT40236239

VALVE

Valve Assembly Includes: 2-4

1шт.

2

MT40007607

VALVE

Loader Front W/Relief 170 Bar

1шт.

COMPONENTS NOT SERVICED

1шт.

3

MT40236241

CABLE

Push Pull

2шт.

4

MT40236240

LEVER

Joystick

1шт.

5

MT40030230

BRACKET

Loader Valve

1шт.

6

MT40028921

BOLT,Hex, M8 x 1.25 x 20mm

Hex, W/Washer M8 x 1.25 x 20L

3шт.

7

MT40028923

BOLT,Hex, M8 x 1.25 x 25mm

Hex, W/Washer M8 x 1.25 x 25L

5шт.

8

MT40030229

BRACKET

Joystick

1шт.

9

MT40029075

FLANGE NUT,Hex, M8 x 1.25

Flange M8 x 1.25

2шт.

10

MT40028934

BOLT,Hex, M8 x 1.25 x 90mm

Hex, W/Washer M8 x 1.25 x 90L

2шт.

11

MT40028196

WASHER,8.4mm ID x 26mm OD x 2.5mm Thk

O.D. 26 x I.D. 8.42 x 2.5T

2шт.

12

MT40232741

SUPPORT

SUPPORT, Loader Valve Pipe

1шт.

13

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

O.D. 16.8 x 1.5T

4шт.

14

MT40257663

TUBE

Bucket Down Includes: Ref. 15

1шт.

15

MT40010144

HYD CONNECTOR

3/8

1шт.

16

MT40257662

TUBE

Bucket Up Includes: Ref. 17

1шт.

17

MT40010144

HYD CONNECTOR

3/8

1шт.

18

MT40258182

TUBE

Boom Up Includes: Ref. 19

1шт.

19

MT40010144

HYD CONNECTOR

3/8

1шт.

20

MT40258180

TUBE

Boom Down Includes: Ref. 21

1шт.

21

MT40010144

HYD CONNECTOR

3/8

1шт.

22

MT40233020

COUPLING

QUICK COUPLER 3/8 Includes: Ref. 27 & 28

4шт.

23

86597755

PLUG,29mm OD x 246mm L

CAP, Coupler 3/8 SB

1шт.

40233026

1шт.

24

86597754

PLUG,29mm OD x 246mm L

CAP, Coupler 3/8 Red

1шт.

40233024

1шт.

25

86597757

PLUG,29mm OD x 246mm L

CAP, Coupler 3/8 Green

1шт.

40233025

1шт.

26

86597758

PLUG,29mm OD x 246mm L

CAP, Couplter 3/8 Yellow

1шт.

40233023

1шт.

27

MT40233022

COUPLING,3/8"

Quick, 3/8"

4шт.

28

MT40009174

ADAPTER,1/2" - 3/8"

Adaptor

4шт.
