Запчасти Case IH L350 (007) - MID-MOUNT HYDRAULIC CONTROL VALVE KIT - 719918006 W/CAB HST (00) - COMPLETE MACHINE

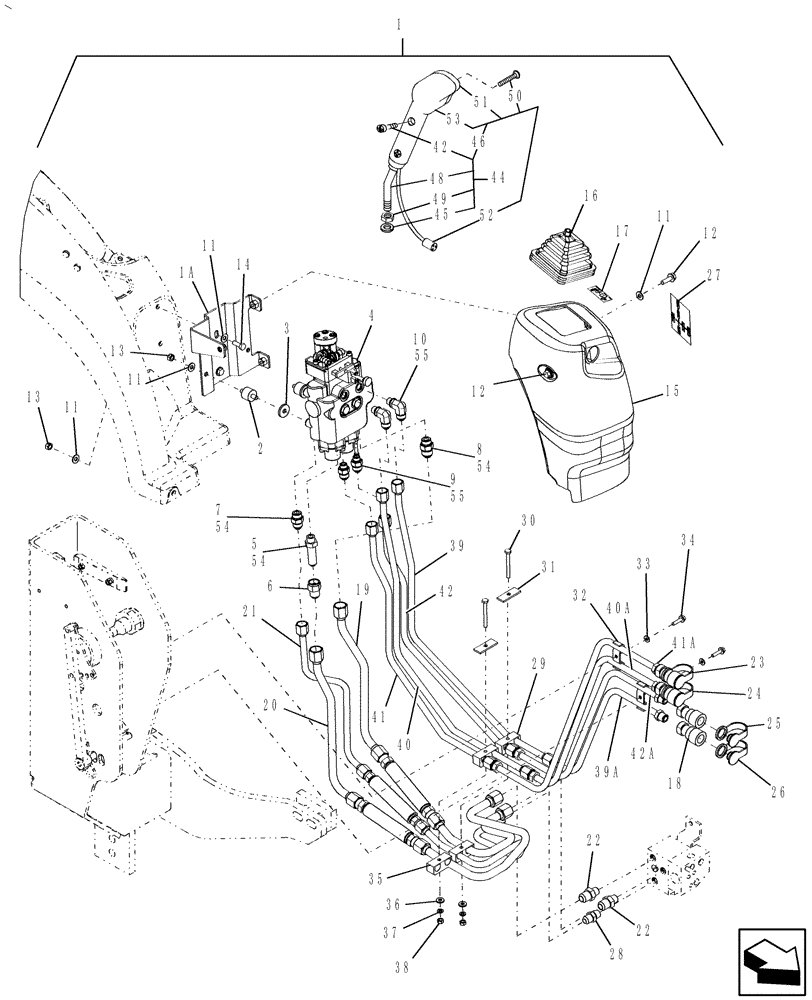

Схема запчастей Case IH L350 - (007) - MID-MOUNT HYDRAULIC CONTROL VALVE KIT - 719918006 W/CAB HST (00) - COMPLETE MACHINE
41
34
24
31
7
3
22
39
55
16
26
14
19
40
55
27
1
9
8
32
39a
54
53
33
42a
37
48
4
11
42
38
23
21
18
30
1a
50
13
5
17
45
20
42
41a
12
12
54
11
44
10
11
28
13
52
36
35
46
25
15
22
40a
6
11
2
49
51
29
54

Артикул

Название

Примечание

Количество

1

719918006

DIA KIT, TRACTOR

Mid-Mount Hydraulic Control Valve Kit used with HST Transmission & Cab Includes: Ref. 1A-36 & 41-51

1шт.

1a

87609436

BRACKET

Bracket, Valve Mount

1шт.

2

86567772

INSULATOR

Valve

3шт.

3

140041

WASHER,M8 x 28mm OD x 3mm Thk

3шт.

4

87571203

HYDRAULIC VALVE

Hydraulic Valve

1шт.

5

9601710

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, Pipe

Includes: Ref. 53

1шт.

6

87039394

REDUCER,37 Degree, 3/4"-16, Fem x 7/8"-14 Male

1шт.

7

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Includes: Ref. 53

1шт.

8

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Includes: Ref. 53

1шт.

9

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Includes: Ref. 54

2шт.

10

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

Includes: Ref. 54

2шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

12

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

13

9635082

NUT,5/16" - 18, Gr 5

5шт.

14

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

15

87609437

PROTECTIVE COVER

Cover, Loader Control

1шт.

16

86530982

BOOT

Loader Joystick

1шт.

17

86401119

DECAL

Valve Lock

1шт.

18

9846343

COUPLING,3/8" NPTF

Hydraulic, Female, O-Ring used is 122056 & Back-Up Ring used is 647327

4шт.

19

87618656

Tube, Pressure

1шт.

NO LONGER SERVICED. Refer to Fig. 007.01 When replacing you must replace all (3) tubes with Ref. 19A-21C

1шт.

20

87618660

Tube, Power Beyond

1шт.

NO LONGER SERVICED. Refer to Fig. 007.01 When replacing you must replace all (3) tubes with Ref. 19A-21C

1шт.

21

87618661

Tube, Tank

1шт.

NO LONGER SERVICED. Refer to Fig. 007.01 When replacing you must replace all (3) tubes with Ref. 19A-21C

1шт.

22

242679

HYD CONNECTOR,7/8" - 14 JIC x 3/8" - 18 NPT

2шт.

23

86597754

PLUG,29mm OD x 246mm L

Dust, Red

1шт.

24

86597755

PLUG,29mm OD x 246mm L

Dust, Blue

1шт.

25

86597757

PLUG,29mm OD x 246mm L

Dust, Green

1шт.

26

86597758

PLUG,29mm OD x 246mm L

Dust, Yellow

1шт.

27

86401095

DECAL

Loader Valve

1шт.

28

163334

HYD CONNECTOR,3/4" - 16 JIC x 3/8" - 18 NPT

1шт.

29

625822

CLAMP,1/2" Tube

Tube

2шт.

30

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

31

86509354

PLATE,9/32" ID x 3/4" W x 2" L

Tab

2шт.

32

86524859

CLAMP

Tube

2шт.

33

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

34

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

35

781221

CLAMP

2шт.

36

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

37

80682

LOCK WASHER,1/4"

2шт.

38

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

39

87646240

HYD TUBE,12.7 mm OD x 485, 432.5 mm L

A2 Port, Boom Rod, Front (Yellow)

1шт.

39a

87646241

HYD TUBE,12.7 mm OD x 237.1, 104.5 mm L

A2 Port, Boom Rod, Rear (Yellow)

1шт.

40

87646243

HYD TUBE,12.7 mm OD x 484.9, 432.6 mm L

A1 Port, Bucket Base, Front (Blue)

1шт.

40a

87646242

HYD TUBE,12.7 mm OD x 261.9, 232.4 mm L

A1 Port, Bucket Base, Rear (Blue)

1шт.

41

87646245

HYD TUBE,12.7 mm OD x 388.58, 385.54 mm L

B1 Port, Bucket Rod, Front (Red)

1шт.

41a

87646244

HYD TUBE,12.7 mm OD x 310.9, 306.9 mm L

B1 Port, Bucket Rod, Rear (Red)

1шт.

42

87646246

HYD TUBE,12.7 mm OD x 388.48, 385.5 mm L

B2 Port, Boom Base, Front (Green)

1шт.

42a

87646247

HYD TUBE,12.7 mm OD x 213.8, 295.1 mm L

B2 Port, Boom Base, Rear (Green)

1шт.

43

86979960

DANGER DECAL

Danger Loader Safety

1шт.

44

86400438

HANDLE

Control Handle Includes: Ref.45-53

1шт.

45

81547

LOCK WASHER,7/16"

HST

1шт.

46

81872967

HANDLE

Loader Control Lever, HST Includes: Ref. 50-53

1шт.

47

82858251

SCREW,M6 x 10mm, Cl 4.8

M6, HST

2шт.

48

86400437

SUPPORT

Handle, HST

1шт.

49

87891

BHD LOCK NUT,Jam, 7/16"-20, G2

HST

1шт.

50

81869171

SELF-TAP SCREW,M12 x 38mm

1шт.

51

81870742

HANDLE

1шт.

52

81874053

SWITCH ASSY

& Wire Assembly

1шт.

53

81878190

HANDLE

1шт.

54

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

55

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
