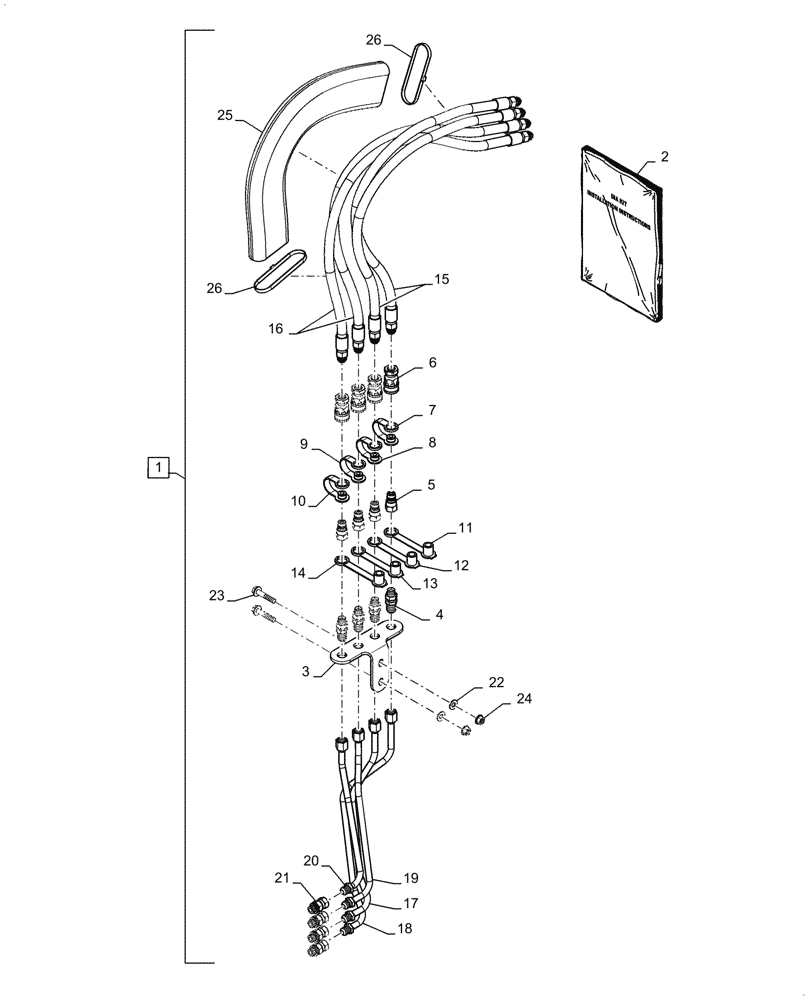

Запчасти Case IH L340A (88.100.35[04]) - DIA KIT, MID MOUNT PLUMBING KIT (88) - ACCESSORIES

1

48066345

KIT

Mid Mount Plubmbing Kit, Incl 2 - 26

1шт.

2

48067411

Manual

INSTRUCTION

1шт.

3

48053149

BRACKET

Hydraulic Tube

1шт.

4

86532865

ADAPTER

Male, Bulkhead

4шт.

5

9846344

QUICK MALE COUPLING,3/8" NPTF

4шт.

6

48058525

COUPLING, QUICK, FEM,3/8" Thread x 3/8" NPTF

4шт.

7

86597755

PLUG,29mm OD x 246mm L

Blue

1шт.

8

86597754

PLUG,29mm OD x 246mm L

Red

1шт.

9

86597757

PLUG,29mm OD x 246mm L

Green

1шт.

10

86597758

PLUG,29mm OD x 246mm L

Yellow

1шт.

11

86597751

DUST CAP,23mm OD x 255mm L

Blue

1шт.

12

86597750

DUST CAP,23mm OD x 255mm L

Red

1шт.

13

86597752

DUST CAP,23mm OD x 255mm L

Green

1шт.

14

86597753

DUST CAP,23mm OD x 255mm L

Yellow

1шт.

15

48064615

HOSE,12.7mm ID x 970mm L

2шт.

16

48053150

HOSE,12.7mm ID x 1045mm L

2шт.

17

48055972

12.7mm OD x 402mm L

TUBE

1шт.

18

48055973

12.7mm OD x 437mm L

TUBE

1шт.

19

48055974

12.7mm OD x 366mm L

TUBE

1шт.

20

48055976

12.7mm OD x 330mm L

TUBE

1шт.

21

47671728

HYD CONNECTOR,3/8" - 19 BSPP x 3/4" - 16 JIC

4шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

23

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

24

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

25

48067359

HOSE PROTECTION

Sleeve

1шт.

26

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.
