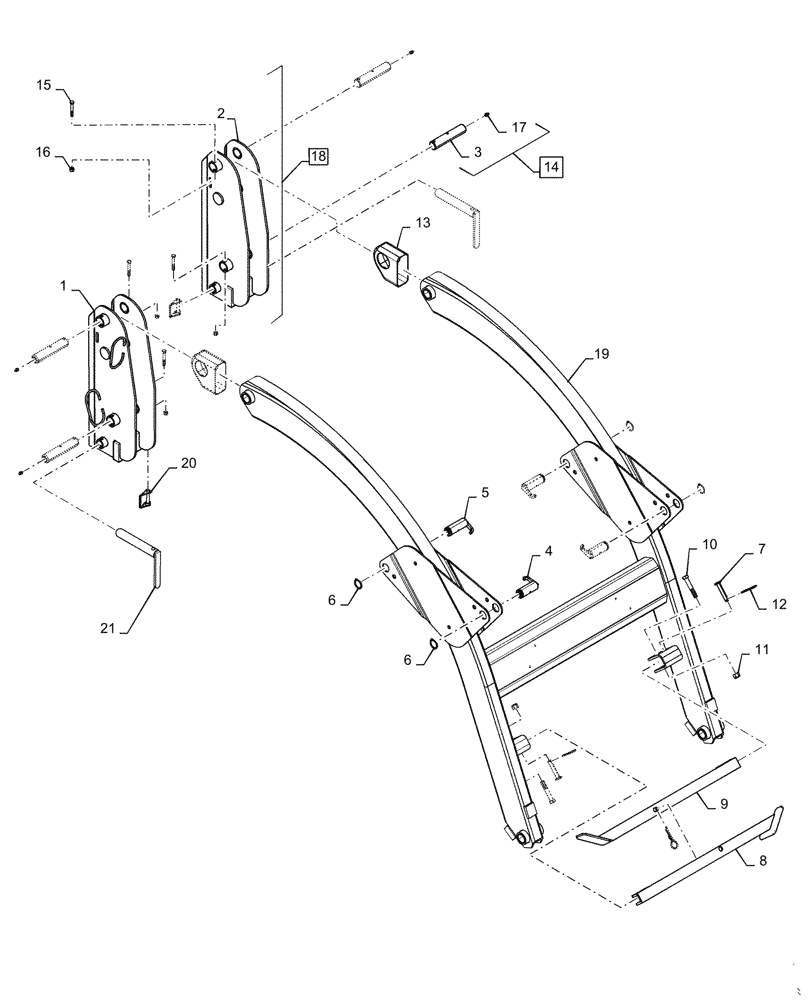

Запчасти Case IH L340A (82.100.010) - LOADER BOOM ARM (82) - FRONT LOADER & BUCKET

1

47629933

TOWER

RH

1шт.

2

47629929

TOWER

LH, W/ Decals

1шт.

3

NSS

NOT SOLD SEPARAT

Pin, 31.75mm OD x 157mm L, Incl in 14

4шт.

4

87489753

SPECIAL PIN,31.75mm OD x 79.35mm L

2шт.

5

87489755

SPECIAL PIN,31.75mm OD x 85.35mm L

2шт.

6

40974

SNAP RING,#125, Ext

4шт.

7

86980627

PIN,1/2" OD x 2-3/4" L

2шт.

8

87399838

JACK

RH, Stand

1шт.

9

87399836

JACK

LH, Stand

1шт.

10

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

11

88871

NUT,1/2"-13, GC

2шт.

12

86511448

COTTER PIN,0.148" Dia x 3.31" L

3шт.

13

87554959

COVER

Loader Boom

2шт.

14

47572463

PIN,31.8mm OD x 157mm L

Assy, Incl 3, 17

4шт.

15

86505972

BOLT,5/16" - 18 x 2 - 1/4", Gr 5

4шт.

16

280736

NUT,5/16"-18, GC

4шт.

17

87414

LUBE NIPPLE,1/4" - 28

4шт.

18

47630636

KIT

Tower, Incl 1, 2

1шт.

19

47895746

BOOM

Arm, W/ Decals

1шт.

20

86837801

PIN,7.93mm OD x 44.45mm L

Linch

2шт.

21

47407645

PIN,25.4mm OD x 161mm L

Tower Assy

2шт.
