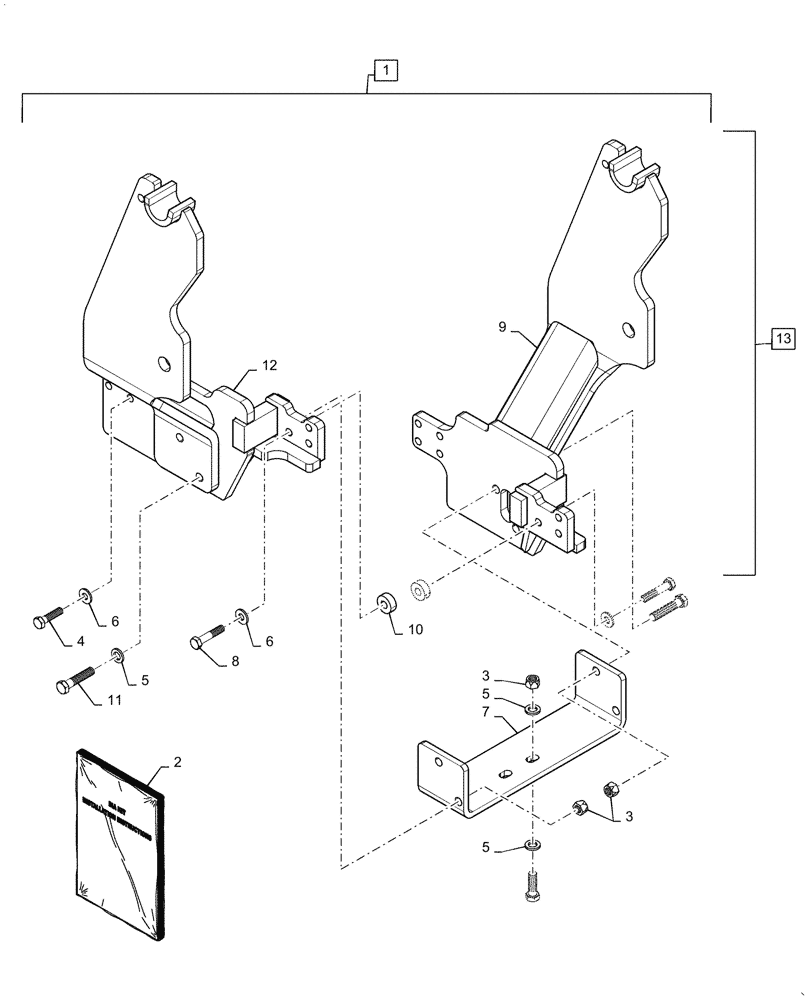

Запчасти Case IH L340A (39.100.020) - VAR - 713696026 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

47825838

KIT

Loader Mount Assy, Incl 2 - 12

1шт.

2

47835565

INSTRUCTION

Manual

1шт.

3

86512555

NUT,M16 x 2, Cl 10

4шт.

4

86589011

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9, Full Thd

6шт.

5

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

6

14408

WASHER,0.56" ID x 1.25" OD x 0.13" Thk

12шт.

7

47633860

PLATE,662mm L

1шт.

8

16215021

SCREW,Hex, M14 x 1.5 x 70mm, Cl 8.8

6шт.

9

47825840

MOUNT

Loader, RH

1шт.

10

47874555

SPACER,33mm OD x 112mm L x 12.7mm Thk

2шт.

11

11119437

BOLT,Hex, M16 x 75, 10.9

4шт.

12

47825842

MOUNT

Loader, LH

1шт.

13

47825839

KIT

Loader Mount, Incl 9, 12

1шт.
