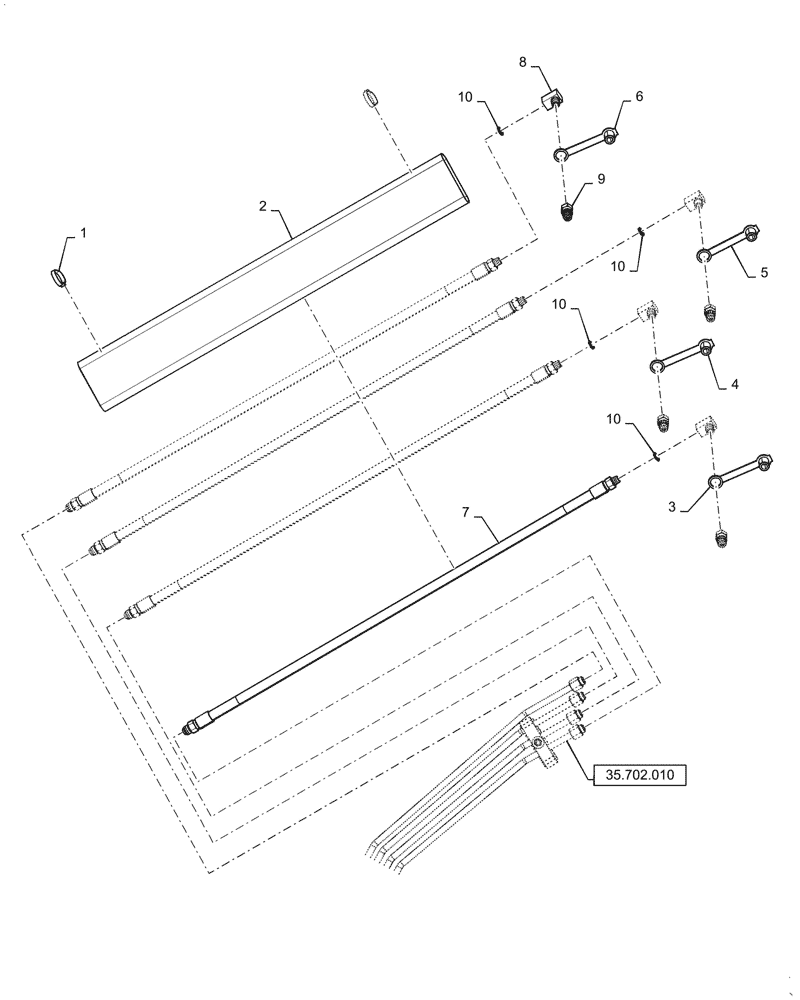

Запчасти Case IH L340A (35.702.020) - BOOM HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

1

263117

CABLE TIE,292.1mm L, Nylon, Black

6шт.

2

47407014

SLEEVE,120mm OD x 1830mm L

Hydraulic Line Protective

1шт.

3

86597753

DUST CAP,23mm OD x 255mm L

Hydraulic Line, Yellow

1шт.

4

86597752

DUST CAP,23mm OD x 255mm L

Hydraulic Line, Green

1шт.

5

86597751

DUST CAP,23mm OD x 255mm L

Hydraulic Line, Blue

1шт.

6

86597750

DUST CAP,23mm OD x 255mm L

Hydraulic Line, Red

1шт.

7

47359984

HYDRAULIC HOSE,12.7mm ID x 2032mm L

Loader Boom Arm

4шт.

8

86521965

ELBOW,90 Degree, 3/8"-18 Female x 3/8"-18 Male

4шт.

9

9846344

QUICK MALE COUPLING,3/8" NPTF

4шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.
