(35.702.010) - BOOM HYDRAULICS

Запчасти Case IH L340A (35.702.010) - BOOM HYDRAULICS (35) - HYDRAULIC SYSTEMS

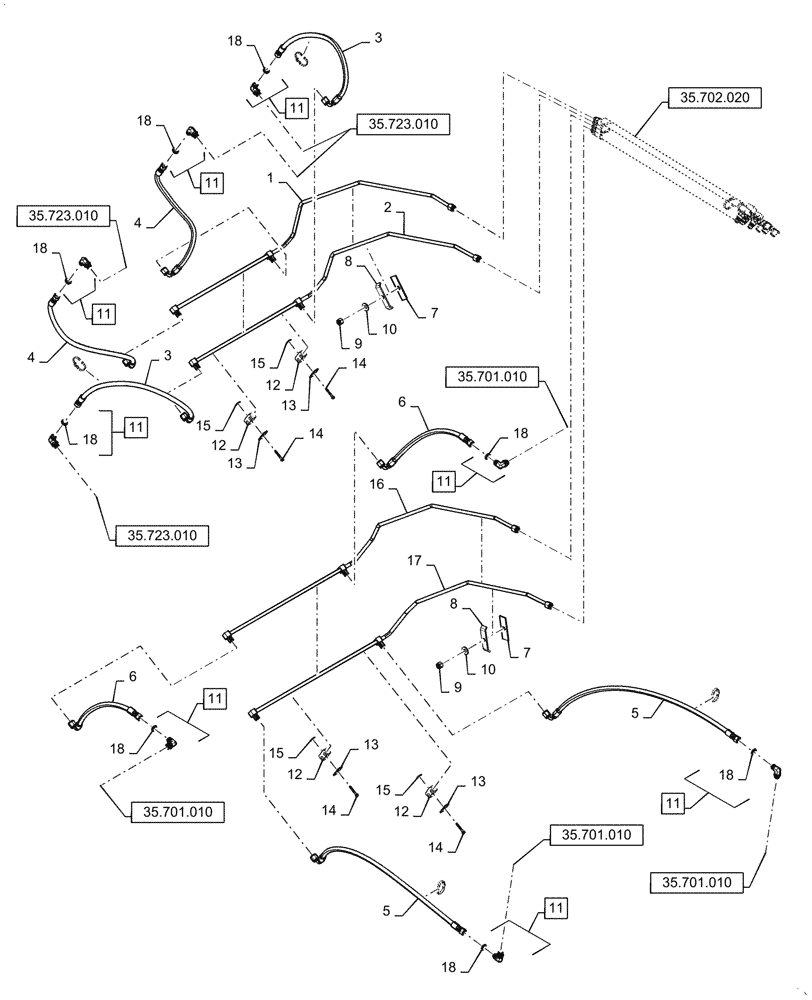

Схема запчастей Case IH L340A - (35.702.010) - BOOM HYDRAULICS (35) - HYDRAULIC SYSTEMS
35.723.010
18
15
9
18
2
11
3
14
8
13
18
15
11
13
18
3
14
15
12
6
1
6
10
4
11
8
16
18
11
11
12
7
10
17
18
18
14
13
11
15
14
11
12
5
12
5
9
4
11
13
7
18
35.702.020
35.701.010
35.701.010
35.701.010
35.701.010
35.723.010
35.723.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87369135

HYD TUBE,12.7mm OD x 980mm L

Upper, Blue

1шт.

2

87369137

HYD TUBE,12.7mm OD x 978mm L

Upper, Red

1шт.

3

87515944

HOSE ASSY.,9.53mm ID x 825.5mm L, SAE 100R17

Hydraulic, Bucket Cylinder, Rod End

2шт.

4

87515946

HOSE ASSY.,9.53mm ID x 647.7mm L, SAE 100R17

Hydraulic, Bucket Cylinder, Base End

2шт.

5

87515947

HOSE ASSY.,9.52mm ID x 1117.6mm L

Hydraulic, Lift Cylinder, Rod End

2шт.

6

87515948

HOSE ASSY.,9.52mm ID x 569.9mm L

Hydraulic, Lift Cylinder, Base End

2шт.

7

765394

PAD,19.8mm ID x 31.8mm W x 101.6mm L

Hose Clamp

2шт.

8

86571694

CLAMP

Hydraulic Hose

2шт.

9

9637692

NUT,3/8"-16, Gr B

2шт.

10

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

11

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 18

8шт.

12

625822

CLAMP,1/2" Tube

4шт.

13

86509354

PLATE,9/32" ID x 3/4" W x 2" L

Tab

4шт.

14

87497919

SELF-TAP SCREW,1/4” x 1.75” L

4шт.

15

86603118

PUSH-ON NUT,1/2” OD x 5/64” Thk

4шт.

16

87369136

HYD TUBE,12.7mm OD x 970mm L

Lower, Green

1шт.

17

87369134

HYD TUBE,12.7mm OD x 970mm L

Lower, Yellow

1шт.

18

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8шт.
