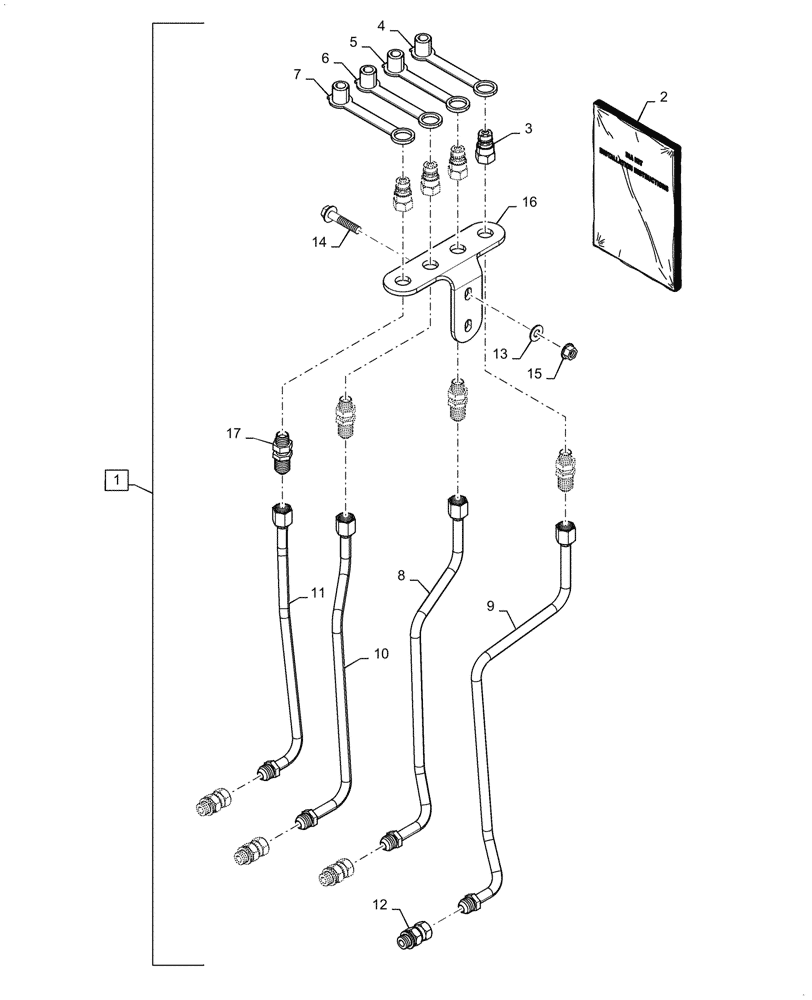

Запчасти Case IH L340A (88.100.35[02]) - DIA KIT, MID MOUNT PLUMBING KIT (88) - ACCESSORIES

1

48066939

KIT

Mid Mount Plumbing Kit, Incl 2 - 17

1шт.

2

48070342

INSTRUCTION

Manual

1шт.

3

9846344

QUICK MALE COUPLING,3/8" NPTF

4шт.

4

86597751

DUST CAP,23mm OD x 255mm L

Blue

1шт.

5

86597750

DUST CAP,23mm OD x 255mm L

Red

1шт.

6

86597752

DUST CAP,23mm OD x 255mm L

Green

1шт.

7

86597753

DUST CAP,23mm OD x 255mm L

Yellow

1шт.

8

48053145

TUBE,12.7mm OD x 402.3mm L

Hydraulic

1шт.

9

48053146

TUBE,12.7mm OD x 437.8mm L

Hydraulic

1шт.

10

48053147

TUBE,12.7mm OD x 366.3mm L

Hydraulic

1шт.

11

48053148

TUBE,12.7mm OD x 330.8mm L

Hydraulic

1шт.

12

47671728

HYD CONNECTOR,3/8" - 19 BSPP x 3/4" - 16 JIC

4шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

14

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

15

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

16

48053149

BRACKET

Hydraulic Tube

1шт.

17

86532865

ADAPTER

Male, Bulkhead

4шт.
