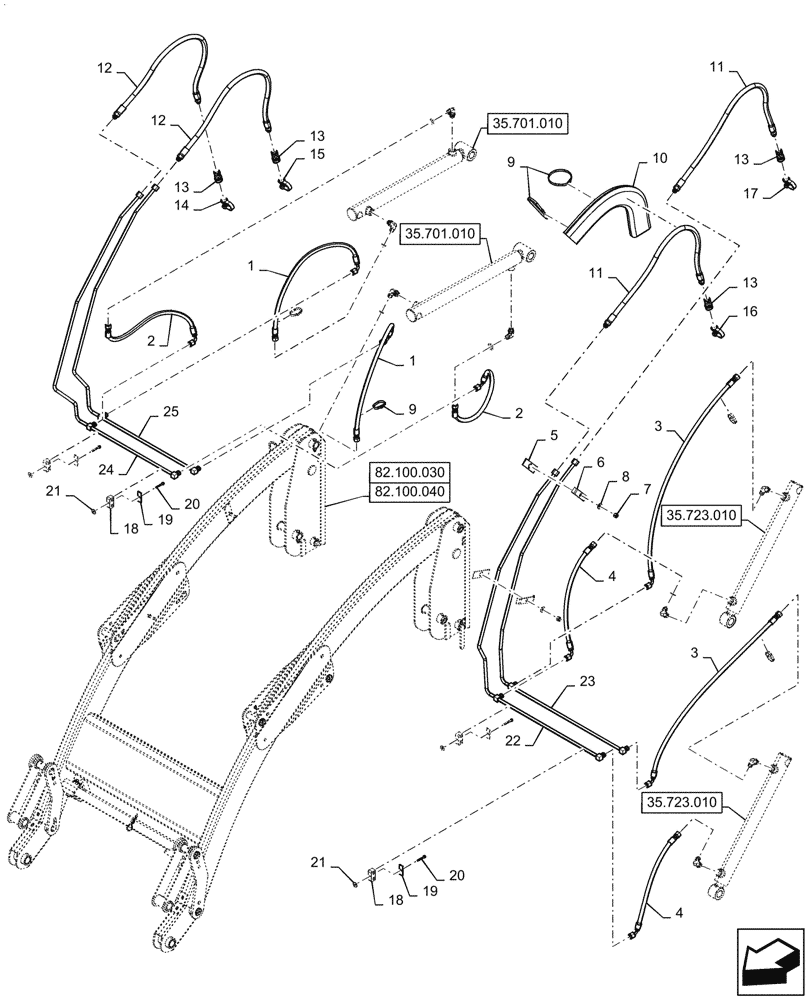

Запчасти Case IH L340A (35.702.040) - BOOM HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

1

87515944

HOSE ASSY.,9.53mm ID x 825.5mm L, SAE 100R17

Bucket Cylinder, Rod End

2шт.

2

87515946

HOSE ASSY.,9.53mm ID x 647.7mm L, SAE 100R17

Bucket Cylinder, Base End

2шт.

3

87515947

HOSE ASSY.,9.52mm ID x 1117.6mm L

Lift Cylinder, Rod End

2шт.

4

87515948

HOSE ASSY.,9.52mm ID x 569.9mm L

Lift Cylinder, Base End

2шт.

5

765394

PAD,19.8mm ID x 31.8mm W x 101.6mm L

Hydraulic Hose

2шт.

6

86571694

CLAMP

Hydraulic Hose

2шт.

7

9637692

NUT,3/8"-16, Gr B

2шт.

8

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

9

263117

CABLE TIE,292.1mm L, Nylon, Black

6шт.

10

48067359

HOSE PROTECTION

Sleeve

1шт.

11

48053150

HOSE,12.7mm ID x 1045mm L

Hydraulic, Bucket Cylinder

2шт.

12

48064615

HOSE,12.7mm ID x 970mm L

Hydraulic, Lift Cylinder

2шт.

13

48058525

COUPLING, QUICK, FEM,3/8" Thread x 3/8" NPTF

4шт.

14

86597755

PLUG,29mm OD x 246mm L

Blue

1шт.

15

86597754

PLUG,29mm OD x 246mm L

Red

1шт.

16

86597757

PLUG,29mm OD x 246mm L

Green

1шт.

17

86597758

PLUG,29mm OD x 246mm L

Yellow

1шт.

18

625822

CLAMP,1/2" Tube

4шт.

19

86509354

PLATE,9/32" ID x 3/4" W x 2" L

Hose Clamp

4шт.

20

87497919

SELF-TAP SCREW,1/4” x 1.75” L

4шт.

21

86603118

PUSH-ON NUT,1/2” OD x 5/64” Thk

4шт.

22

87369136

HYD TUBE,12.7mm OD x 970mm L

Lift Cylinder, Base End

1шт.

23

87369134

HYD TUBE,12.7mm OD x 970mm L

Lift Cylinder, Rod End

1шт.

24

87369135

HYD TUBE,12.7mm OD x 980mm L

Bucket Cylinder, Rod End

1шт.

25

87369137

HYD TUBE,12.7mm OD x 978mm L

Bucket Cylinder, Base End

1шт.
