Заказать запчасти

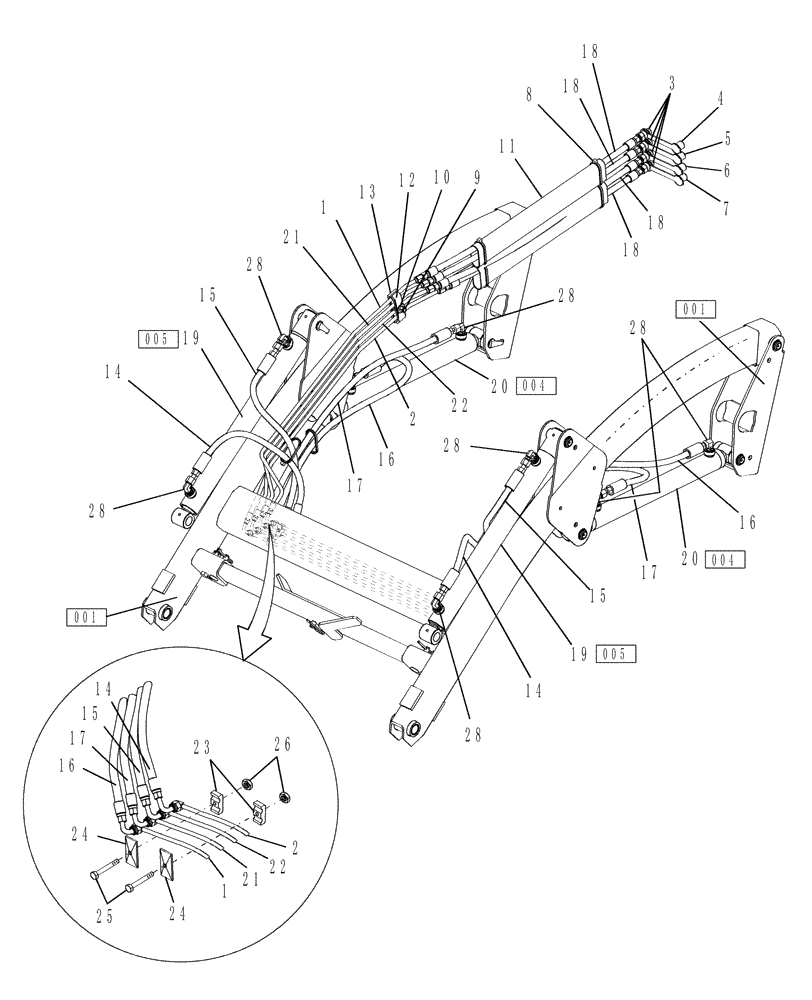

Запчасти Case IH L340 (003) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
87369135
HYD TUBE,12.7mm OD x 980mm L
Bucket Cylinder Base End, Includes: Ref. 24 & 25
1шт.
2
87369134
HYD TUBE,12.7mm OD x 970mm L
Lift Cylinder Base End, Includes: Ref. 24 & 25
1шт.
3
9846344
QUICK MALE COUPLING,3/8" NPTF
Hydraulic 3/8", NPTF
4шт.
4
86597751
DUST CAP,23mm OD x 255mm L
Blue
1шт.
5
86597750
DUST CAP,23mm OD x 255mm L
Red
1шт.
6
86597752
DUST CAP,23mm OD x 255mm L
Green
1шт.
7
86597753
DUST CAP,23mm OD x 255mm L
Yellow
1шт.
8
323597
CABLE TIE,165mm OAL x 9mm Thk
CABLE STRAP
10шт.
9
9637692
NUT,3/8"-16, GB
2шт.
10
80702
WASHER,0.44" ID x 1" OD x 0.08" Thk
2шт.
11
86580556
PROTECTING COVER
2шт.
12
86571694
CLAMP
2шт.
13
765394
PAD,19.8mm ID x 31.8mm W x 101.6mm L
2шт.
14
87515944
HOSE ASSY.,9.53mm ID x 825.5mm L, SAE 100R17
Bucket Cylinder Base End
2шт.
15
87515946
HOSE ASSY.,9.53mm ID x 647.7mm L, SAE 100R17
Bucket Cylinder Rod End
2шт.
16
87515947
HOSE ASSY.,9.52mm ID x 1117.6mm L
Lift Cylinder Base End
2шт.
17
87515948
HOSE ASSY.,9.52mm ID x 569.9mm L
Lift Cylinder Rod End
2шт.
18
86594270
HYDRAULIC HOSE,12.7mm ID x 1143mm L, SAE 100R17
4шт.
19
87399664
CYLINDER,Double Acting, 28.57mm Rod, 484mm Stroke
Bucket
2шт.
20
87399665
CYLINDER,Double Acting, 34.92mm Rod, 464.3mm Stroke
Lift
2шт.
21
87369137
HYD TUBE,12.7mm OD x 978mm L
Lift Cylinder Base End, Includes: Ref. 24 & 25
1шт.
22
87369136
HYD TUBE,12.7mm OD x 970mm L
Bucket Cylinder Rod End, Includes: Ref. 24 & 25
1шт.
23
625822
CLAMP,1/2" Tube
2шт.
24
86509354
PLATE,9/32" ID x 3/4" W x 2" L
2шт.
25
87497919
SELF-TAP SCREW,1/4” x 1.75” L
4шт.
26
86603118
PUSH-ON NUT,1/2” OD x 5/64” Thk
2шт.
Not Illustrated
1шт.
28
128830
90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB
Incl. Ref. 23
8шт.
29
129428
TUBE NUT,37 Degree, 3/4"-16, Type B
4шт.
Not Illustrated
1шт.
30
235671
SLEEVE,37 Degree, 1/2" Tube
4шт.
Not Illustrated
1шт.
Выбрано товаров: 33
