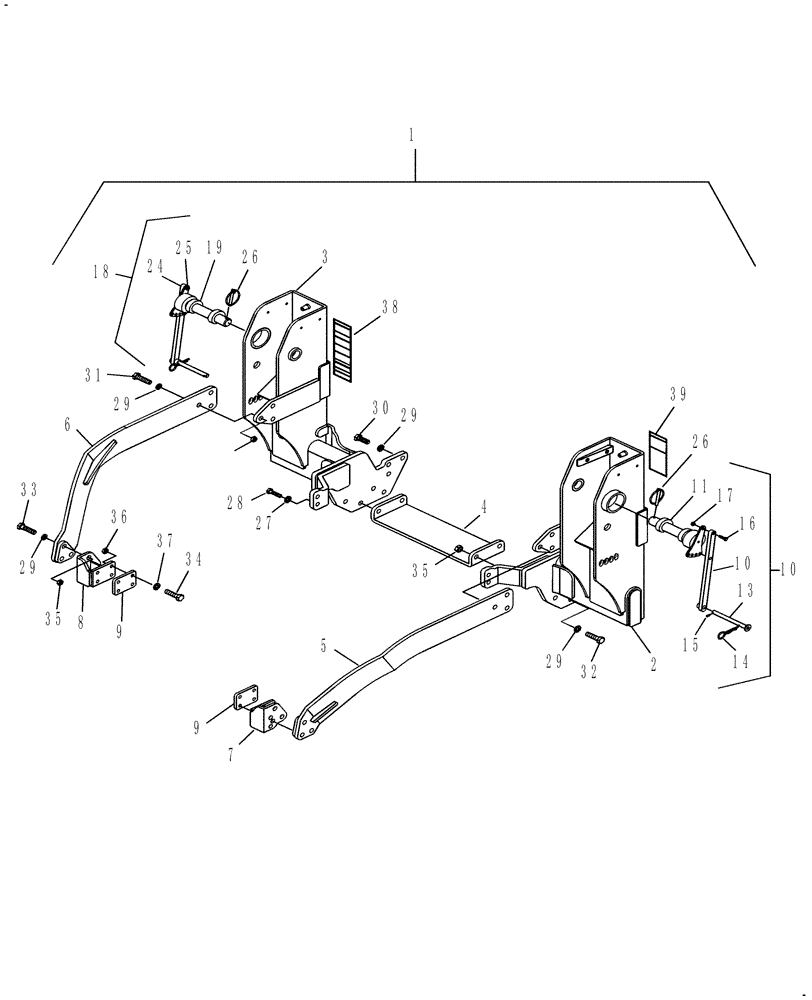

Запчасти Case IH L340 (002.04) - DIA KIT, MOUNT - 715782196 - FARMALL 30B/35B

1

715782196

DIA KIT, TRACTOR

MOUNT KIT Includes: Ref. 2-39

1шт.

2

MT40232124

BRACKET, SUPPORTING

BRACKET, MOUNT, LH

1шт.

2

84413122

MOUNT

MOUNT, LH BRACKET

1шт.

3

MT40232126

BRACKET, SUPPORTING

BRACKET, MOUNT, RH

1шт.

3

84381523

MOUNT

MOUNT, RH BRACKET

1шт.

4

MT40232127

SUPPORT

SUPPORT, MOUNT

1шт.

4

84376302

SUPPORT

SUPPORT, MOUNT

1шт.

5

MT40233952

SUPPORTING ARM

ARM, SUPPORT, LH

1шт.

5

84381540

MOUNT

MOUNT, FRONT BRACE, LH

1шт.

6

MT40233953

SUPPORTING ARM

ARM, SUPPORT, RH

1шт.

6

84381535

MOUNT

MOUNT, FRONT BRACE, RH

1шт.

7

MT40233938

BRACKET

BRACKET, ARM, LH

1шт.

7

84381548

MOUNT

MOUNT, FRONT BRACKET, LH

1шт.

8

MT40233939

BRACKET

BRACKET, ARM, RH

1шт.

8

84381547

MOUNT

MOUNT, FRONT BRACKET, RH

1шт.

9

MT40233937

SPACER

SPACER, ARM

2шт.

9

84381551

PLATE

PLATE,SPACER,FRONT BRACE

2шт.

10

0C

ORDER COMPONENTS

PIN, LH Includes: Ref. 11-17

1шт.

11

87663542

CAM

LH

1шт.

12

87353820

LEVER

Cam

1шт.

13

87353821

LEVER

Handle

1шт.

14

80033778

COTTER PIN,11/32" x 3 1/4" x 0.148", CAD or ZNP

1шт.

15

138-69

LOCK PIN,5/32" x 1/2", Slotted

1шт.

16

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

17

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

18

0C

ORDER COMPONENTS

PIN, RH Includes: Ref. 19-25

1шт.

19

87663543

CAM

RH

1шт.

20

87353820

LEVER

Cam

1шт.

21

87353821

LEVER

Handle

1шт.

22

80033778

COTTER PIN,11/32" x 3 1/4" x 0.148", CAD or ZNP

1шт.

23

138-69

LOCK PIN,5/32" x 1/2", Slotted

1шт.

24

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

25

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

26

285312

PIN

Link

2шт.

27

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

4шт.

28

15540831

BOLT,Hex, M12 x 1.25 x 50mm, Cl 10.9

4шт.

29

80140047

LOCK WASHER

22шт.

30

87555733

BOLT,Hex, M14 x 40mm, Cl 10.9, Full Thd

6шт.

31

87015765

BOLT,Hex, M14 x 45mm, Cl 10.9, Full Thd

6шт.

32

87316174

BOLT,Hex, M14 x 50mm, Cl 10.9

4шт.

33

86589011

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9, Full Thd

6шт.

34

86508618

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

35

725626

NUT

16шт.

36

2979506

LOCK NUT,Prev Torque Hex, M10 x 1.25, Cl 10

8шт.

37

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

8шт.

38

86979960

DANGER DECAL

1шт.

39

86979962

WARNING DECAL

1шт.
