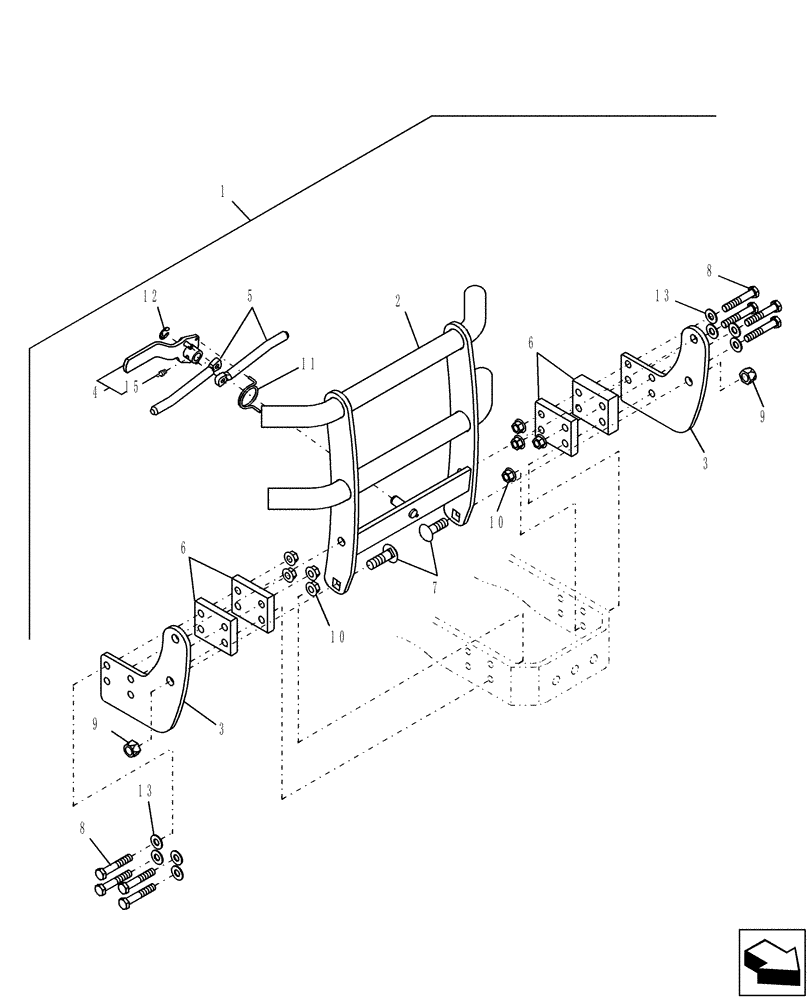

Запчасти Case IH L340 (009) - GRILLE GUARD KIT

1

W0

ORDER WHOLEGOODS

Grill Guard Kit

1шт.

719849056

1шт.

2

86405012

GUARD

1шт.

3

86404938

BRACKET

Grill Guard Mounting

2шт.

4

86400478

HANDLE

Includes: Ref. 15

1шт.

5

86400479

GUARD

2шт.

6

86404935

BRACKET

Spacer, 1/2"

2шт.

7

811-16040

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 40mm, Cl 8.8

2шт.

8

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

8шт.

9

832-46416

NUT,M16 x 2, Cl 8

2шт.

10

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

8шт.

11

86558147

SPRING

1шт.

12

100-3362

SNAP RING,#62, .480" Dia, E-Type

1шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

14

280480

BOLT,Tap, Hex, 1/2" - 13 x 3 1/2", Gr 8

8шт.

15

87414

LUBE NIPPLE,1/4" - 28

1шт.

16

PL

PROCURE LOCALLY

Cotter Pin, used with Ref. 5

2шт.

Not Illustrated

1шт.
