(8-06) - HYDRAULICS, BUCKET, WITHOUT SELF LEVELING

Запчасти Case IH L300 (8-06) - HYDRAULICS, BUCKET, WITHOUT SELF LEVELING (08) - HYDRAULICS

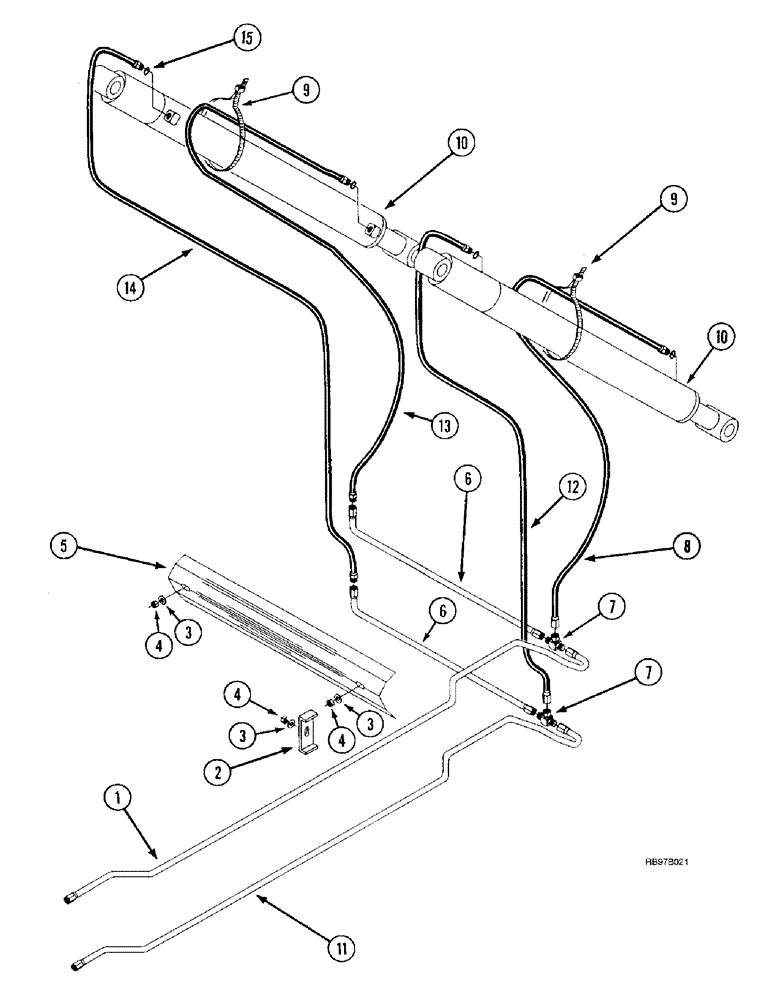

Схема запчастей Case IH L300 - (8-06) - HYDRAULICS, BUCKET, WITHOUT SELF LEVELING (08) - HYDRAULICS
3
3
7
4
8
7
5
9
6
9
13
2
4
12
11
10
4
6
10
3
14
1
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1985005C1

HYD TUBE,0.5" OD

1шт.

2

1985012C1

CLAMP

2шт.

3

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

4шт.

4

231-1446

NUT,3/8" - 16, Gr 5

4шт.

5

1985014C1

COVER

protective

1шт.

6

1985007C1

HYD TUBE,0.5" OD

2шт.

7

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

3/4-16 sw br x fl x fl

2шт.

8

1985017C1

HOSE

1118 mm (44 in)

1шт.

9

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

2шт.

10

105064A1

CYLINDER,Double Acting, 44.45mm Rod, 647.7mm Stroke

ASSY., Bucket, 76 ID x 648 mm strk, See Figure: 8-50

2шт.

11

1985003C1

HYD TUBE,0.5" OD

1шт.

12

1985018C1

HOSE

711 mm (28 in)

1шт.

13

1540350C1

HOSE

1308 mm (51-1/2 in)

1шт.

14

1540355C1

HOSE

914 mm (36 in)

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.
