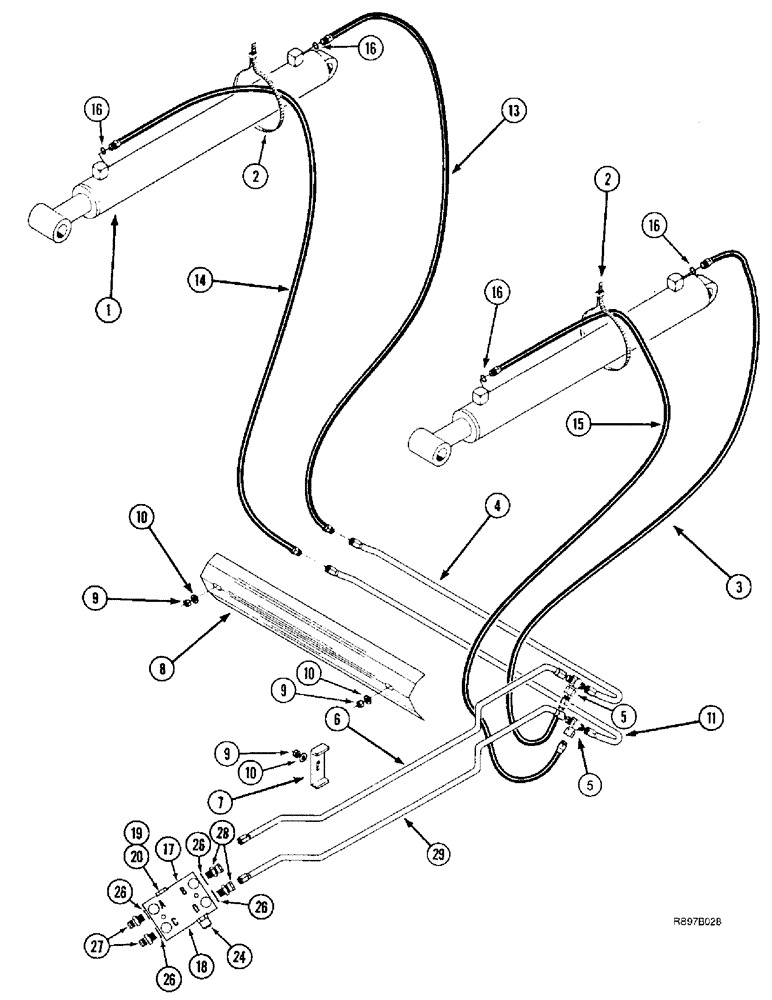

Запчасти Case IH L300 (8-04) - HYDRAULICS, BOOM, WITH SELF LEVELING (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSY., boom See Figure: 8-48

2шт.

2

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

2шт.

3

1985021C1

HOSE

635 mm (25 in)

1шт.

4

1985001C1

HYD TUBE,0.5" OD, 940 mm Length

1шт.

5

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

3/4-16 sw br x fl x fl

2шт.

6

1985002C1

HYD TUBE,0.5" OD

1шт.

7

1985012C1

CLAMP

2шт.

8

1985014C1

COVER

protective

1шт.

9

231-1446

NUT,3/8" - 16, Gr 5

4шт.

10

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

4шт.

11

1985000C1

HYD TUBE,0.5" OD

1шт.

13

1985022C1

HOSE

559 mm (22 in)

1шт.

14

1540350C1

HOSE

1308 mm (51-1/2 in)

1шт.

15

105068A1

HOSE ASSY.

1334 mm (52-1/2 in)

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8шт.

17

T58169

VALVE

self level Includes: 18-24

1шт.

Ref #17 P/N T58169 is a Husco valve. This valve may also have "CROSS" stamped on it.

1шт.

18

T58170

BODY

valve

1шт.

19

D54590

PLUG

ASSY., Consists of: 20-23

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Not Illustrated

1шт.

22

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

Not Illustrated

1шт.

23

D56904

BACK-UP RING

back-up, Not Illustrated

1шт.

24

T58171

PLUG

valve, relief 1900 psi

1шт.

25

220721A1

SEAL KIT

package, seals relief valve

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

27

105029A1

CONNECTOR, ELEC

CONNECTOR ADAPTER

2шт.

28

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter

2шт.

29

1985004C1

HYD TUBE,0.5" OD

(replaces 1985003C1)

1шт.
