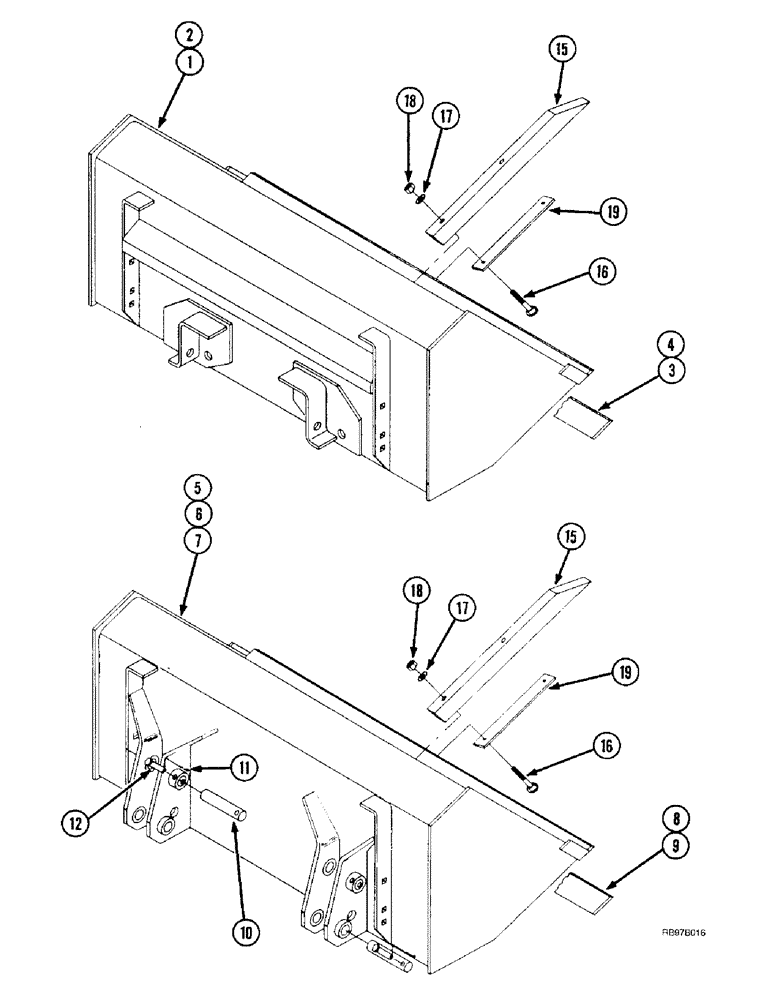

Запчасти Case IH L300 (9-14) - MATERIAL BUCKET (09) - CHASSIS/ATTACHMENTS

1

1985058C3

BUCKET, 84 in, heavy duty, Machinery Item, Quick Attach Type

1шт.

2

105020A2

BUCKET

84 in, general purpose, Machinery Item, Quick Attach Type

1шт.

3

1985301C2

BLADE

edge, cutting 73-1/2 in

1шт.

4

1985302C2

BLADE

edge, cutting 85-1/2 in

1шт.

5

1985072C2

BUCKET, 72 in, Heavy Duty, Machinery Item, standard attach type

1шт.

6

1985073C3

BUCKET

84 in, Heavy Duty, Machinery Item, standard attach type

1шт.

7

105021A1

BUCKET

84 in, General Purpose, Machinery Item, standard attach type

1шт.

8

1985301C2

BLADE

edge, cutting, 73-1/2 in

1шт.

9

1985302C2

BLADE

edge, cutting, 85-1/2 in

1шт.

10

1985029C1

PIN,29mm OD x 187mm L

headless, 1-1/8 x 7-1/4

4шт.

11

432-612

COTTER PIN,3/32" x 3/4"

4шт.

12

427-6225

CLEVIS PIN,3/8" x 2 1/4"

3/8 x 2-1/4

4шт.

15

T51043

TINE

bucket

10шт.

16

419-3648

PLOW BOLT,#3, 3/8" - 16 x 3", Gr 5

3/8 x 3

20шт.

17

492-11038

LOCK WASHER,3/8"

20шт.

18

425-106

NUT,3/8"-16, Cl 5

20шт.

19

1540357C1

BAR

10шт.
