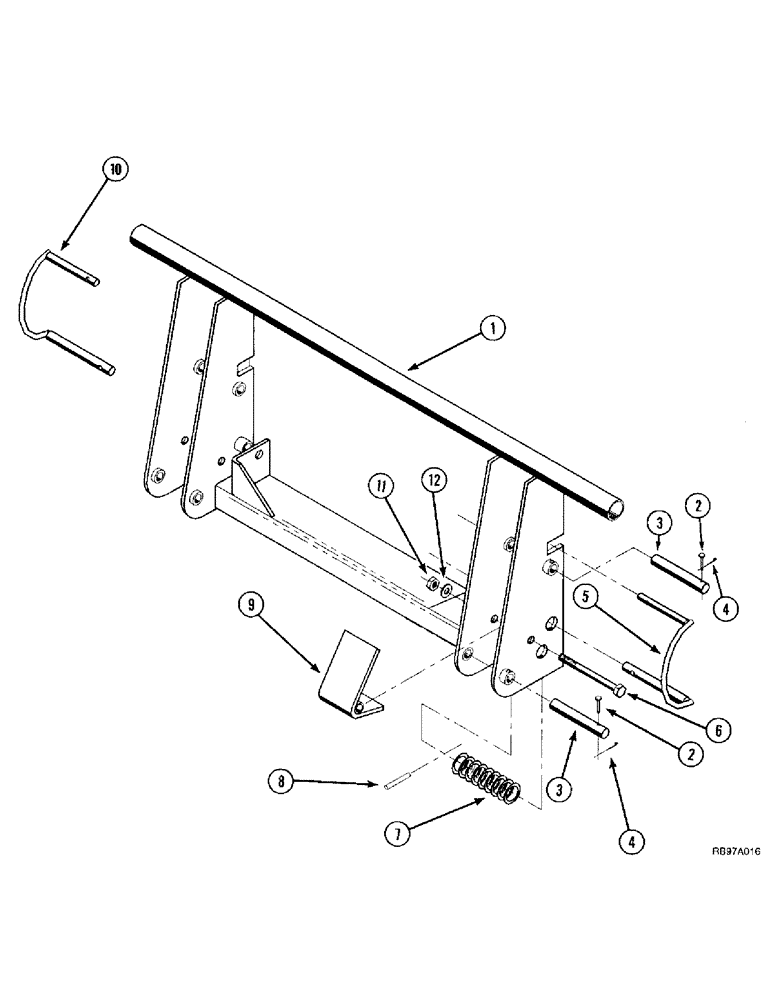

Запчасти Case IH L300 (9-12) - QUICK ATTACH ADAPTER (09) - CHASSIS/ATTACHMENTS

1

105049A1

ADAPTER

FRAME

1шт.

2

427-6225

CLEVIS PIN,3/8" x 2 1/4"

3/8 x 2-1/4

4шт.

3

1985029C1

PIN,29mm OD x 187mm L

headless, 1-1/8 x 7-1/4

4шт.

4

432-612

COTTER PIN,3/32" x 3/4"

4шт.

5

1985046C1

HANDLE

right hand

1шт.

6

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

BOLT, 3/8 x 6

2шт.

7

1978830C1

SPRING

2шт.

8

438-12428

LOCK PIN,3/8" x 1 3/4", Slotted

3/8" x 1 3/4", Slotted

2шт.

9

105050A1

CAP

COVER protective

2шт.

10

1985047C1

HANDLE

left hand

1шт.

11

231-4116

NUT,3/8"-16, GB

lock, 3/8

2шт.

12

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

105006A1

SEALANT

Not Illustrated

1шт.
