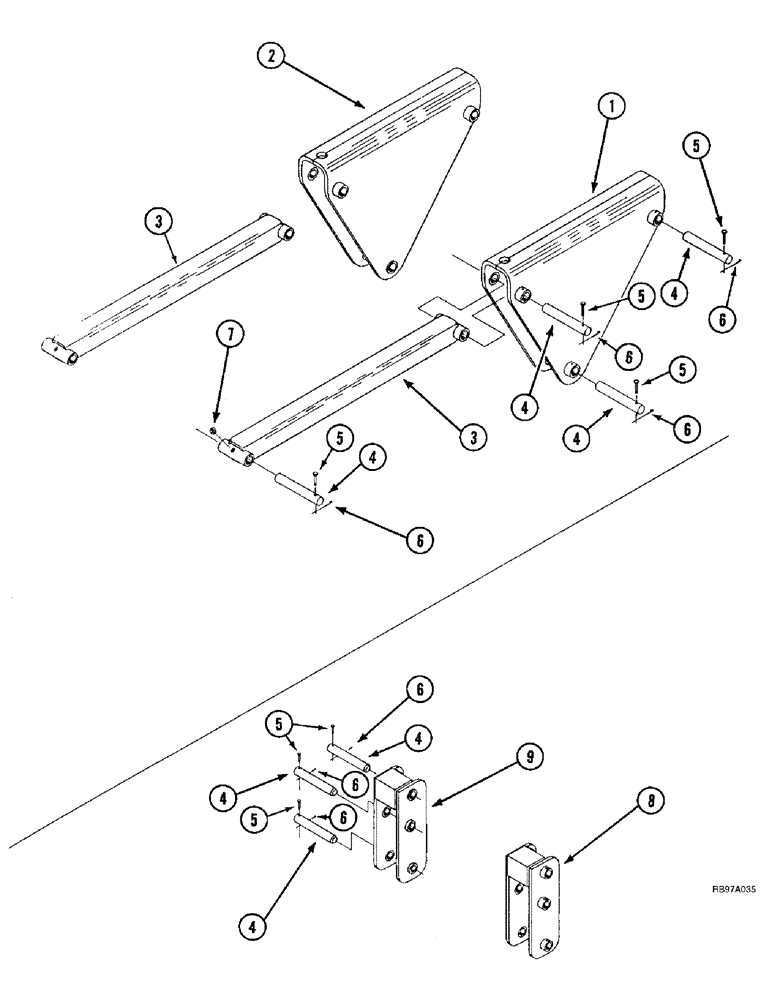

Запчасти Case IH L300 (9-06) - MECHANICAL SELF LEVELING LINKAGE (09) - CHASSIS/ATTACHMENTS

1

105027A1

PLATE

RH, Link

1шт.

2

105028A1

PLATE

LH, Link

1шт.

3

105026A1

LINK ASSY.

2шт.

4

1985029C1

PIN,29mm OD x 187mm L

8шт.

4

1985029C1

PIN,29mm OD x 187mm L

Standard Linkage

6шт.

5

427-6225

CLEVIS PIN,3/8" x 2 1/4"

8шт.

5

427-6225

CLEVIS PIN,3/8" x 2 1/4"

Standard Linkage

6шт.

6

432-612

COTTER PIN,3/32" x 3/4"

8шт.

6

432-612

COTTER PIN,3/32" x 3/4"

Standard Linkage

6шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

8

105109A1

LINK

LH, Standard Linkage

1шт.

9

105108A1

LINK

RH, Standard Linkage

1шт.
