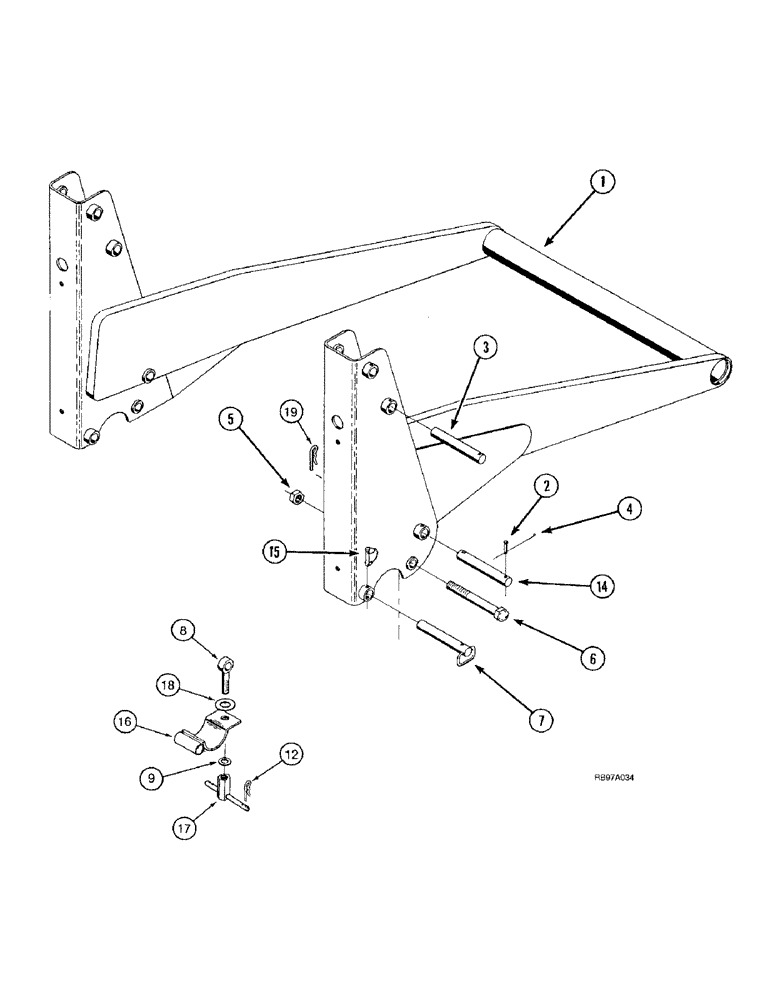

Запчасти Case IH L300 (9-04) - SUBFRAME (09) - CHASSIS/ATTACHMENTS

1

254359A1

FRAME ASSY

includes Decals, See Figure: 9-20

1шт.

2

427-6225

CLEVIS PIN,3/8" x 2 1/4"

3/8 x 2-1/4

4шт.

3

105056A1

PIN,33.34mm OD x 187mm L

headless, 1-5/16 x 7-1/4

2шт.

4

432-612

COTTER PIN,3/32" x 3/4"

4шт.

5

231-41112

LOCK NUT,3/4"-10, GB

2шт.

6

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

3/4 x 6-1/2

2шт.

7

1973017C1

PIN ASSY.

linch, 3/4 x 6-3/4

2шт.

8

1973005C1

EYEBOLT

BOLT, EYE

2шт.

9

495-11081

WASHER,3/4", SAE

2шт.

12

1978737C1

COTTER PIN,Int, 1/8" x 49mm

lock

2шт.

14

1985033C1

PIN,33.34mm OD x 205mm L

headless, 1-5/16 x 8

2шт.

15

1985043C1

RING, SNAP

RING SNAP

1шт.

REF ITEM 15 ON THE PICTORIAL S/B P/N 1985043C1 PER CASE# 556540 AND WERDS.

1шт.

16

1973019C2

CLAMP

2шт.

17

1343215C1

SPECIAL NUT

special

2шт.

18

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

13/16 x 1-1/2 x 7/32

6шт.

19

1978738C1

HAIR PIN COTTER

3/16"

1шт.
