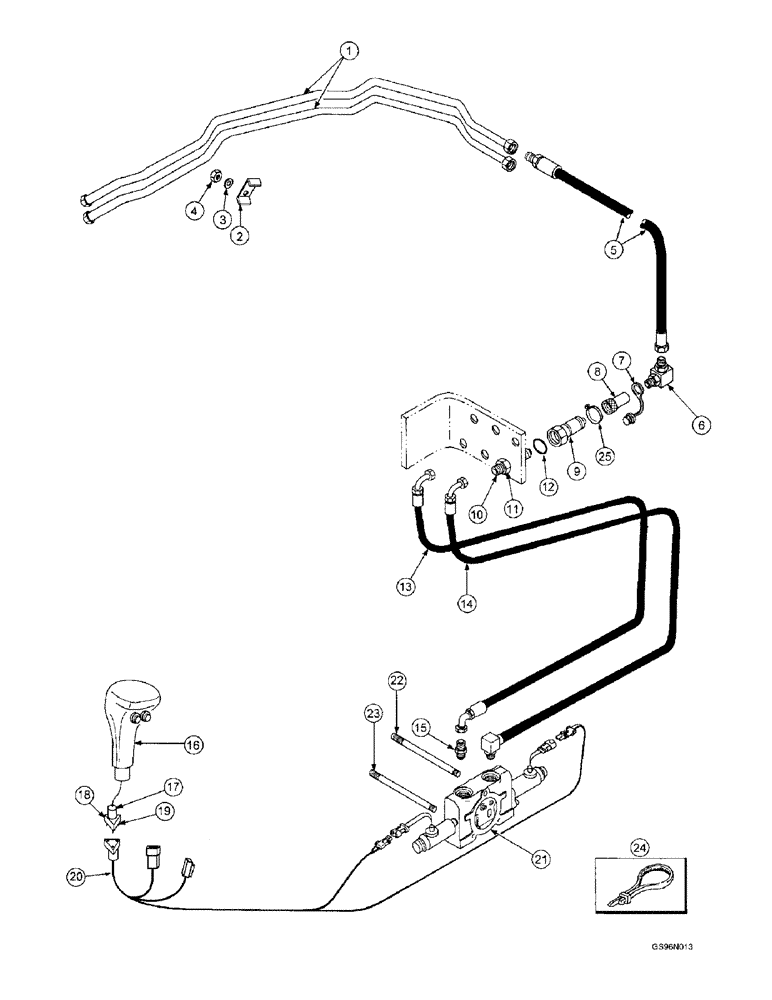

Запчасти Case IH L300 (8-58) - THIRD FUNCTION KIT, EXTERNAL VALVE (08) - HYDRAULICS

254151A1

ATTACHMENT, field 3 Function Machinery Item, Consists of: 1-25

1шт.

1

1985006C1

HYD TUBE,0.5" OD

2шт.

2

851448C1

CLAMP

1шт.

3

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

4

231-1446

NUT,3/8" - 16, Gr 5

1шт.

5

222663A1

HOSE

1677 mm (66 in)

2шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 7/8-14 fl x adj. Or

2шт.

7

195608A1

CAP

dust

2шт.

8

1272400C1

COUPLING

female

2шт.

9

1272399C2

QUICK MALE COUPLING

7/8 NF, self-sealing, male

2шт.

10

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

2шт.

11

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

13

246942A2

HOSE ASSY.

1829 mm (72 in) (replaces 222639A2)

1шт.

14

222639A2

HOSE ASSY.

1829 mm (72 in) (replaces 246942A2)

1шт.

15

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER, 7/8 fl x Or

1шт.

16

246988A1

CONTROL

HANDLE ASSY., includes: 17-19

1шт.

17

225294C1

ELEC CONNECTOR,Male, 3 Pin

electrical

1шт.

18

225296C1

ELEC CONNECTOR

wedge

1шт.

19

225053C1

TERMINAL CONNECTOR,Female, 0.8 - 1 mm2

3шт.

20

247474A1

HARNESS

1шт.

21

252785A1

VALVE BLOCK

ASSY., control

1шт.

22

1344728C1

TIE-ROD,3/8" - 24 x 7 5/8"

3/8 x 7-5/8

1шт.

23

1344726C1

TIE-ROD,5/16" - 18 x 7 1/2"

TIE ROD 5/16 x 7-1/2

2шт.

24

291207C1

CLAMP

STRAP, 14 inch

4шт.

25

1985078C2

SET OF PARTS

KIT indicator

1шт.
