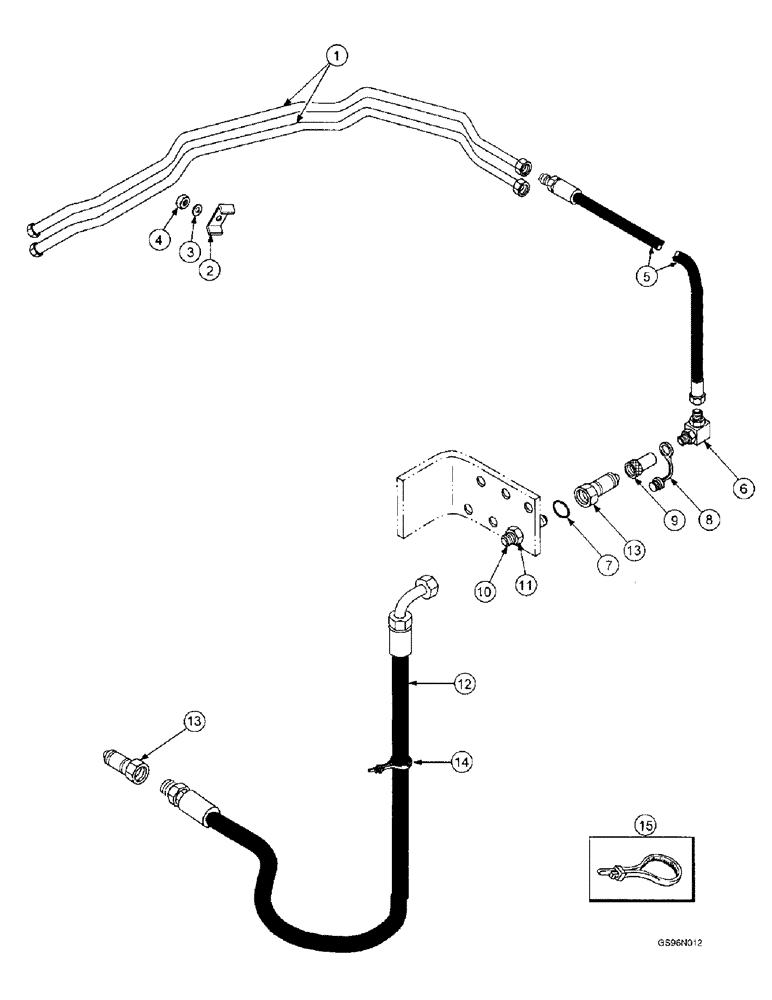

Запчасти Case IH L300 (8-56) - THIRD FUNCTION KIT, MID MOUNT (08) - HYDRAULICS

254152A1

ATTACHMENT, field, 3 Function, Machinery Item, Consists of: 1-15

1шт.

1

1985006C1

HYD TUBE,0.5" OD

2шт.

2

851448C1

CLAMP

1шт.

3

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

1шт.

4

231-1446

NUT,3/8" - 16, Gr 5

1шт.

5

222663A1

HOSE

1677 mm (66 in)

2шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 7/8-14 fl x adj. Or

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

8

195608A1

CAP

dust

2шт.

9

1272400C1

COUPLING

female

2шт.

10

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

2шт.

11

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

2шт.

12

222664A2

HOSE ASSY.

3404 mm (134 in)

2шт.

13

1272399C2

QUICK MALE COUPLING

7/8 NF, self-sealing, male

4шт.

14

291207C1

CLAMP

STRAP, 14 inch

4шт.

15

1985078C2

SET OF PARTS

KIT indicator

1шт.
