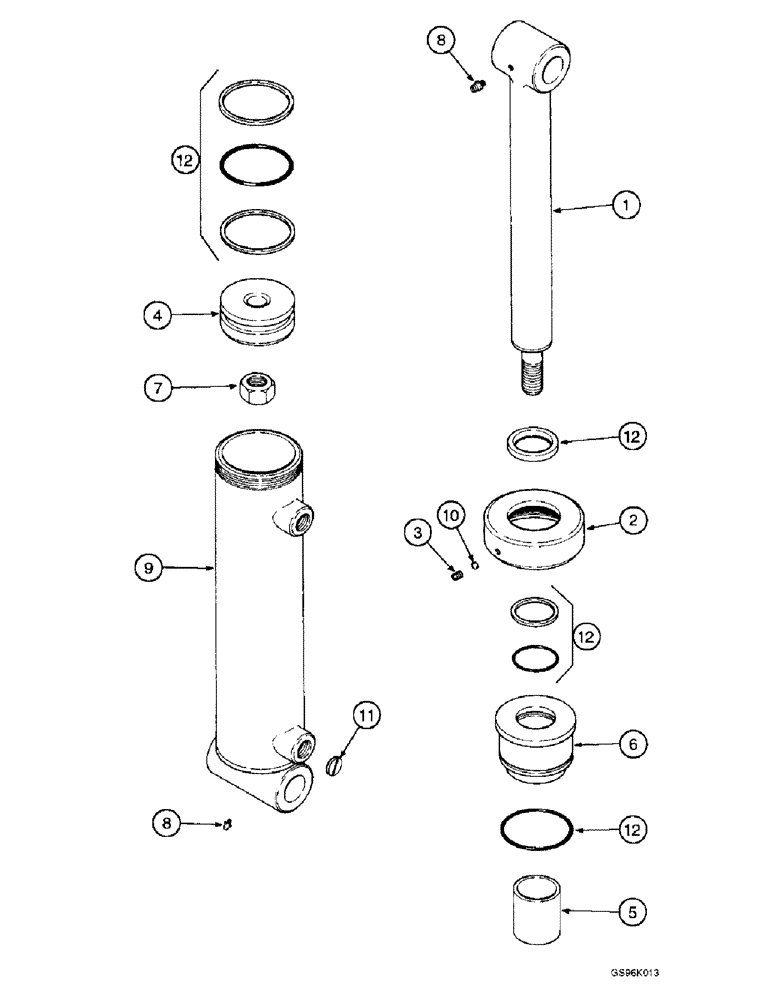

Запчасти Case IH L300 (8-52) - CYLINDER ASSEMBLY, GRAPPLE (08) - HYDRAULICS

T57744

CYLINDER

ASSY., 64 ID x 222 mm strk, Consists of: 1-10

1шт.

1

220714A1

ROD ASSY.

PISTON

1шт.

2

T57599

CAP ASSY.

HEAD cylinder top

1шт.

3

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 x 1/4

1шт.

4

B17273

PISTON

1шт.

5

T58030

SPACER

1шт.

6

T50088

HEAD

cylinder

1шт.

7

425-1112

NUT,3/4"-16, G5

3/4 NF

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

9

NSS

NOT SOLD SEPARAT

BODY

1шт.

10

T55068

PLUG

1шт.

11

220715A1

ORIFICE

PAD

1шт.

12

T51786

SEAL KIT

1шт.
