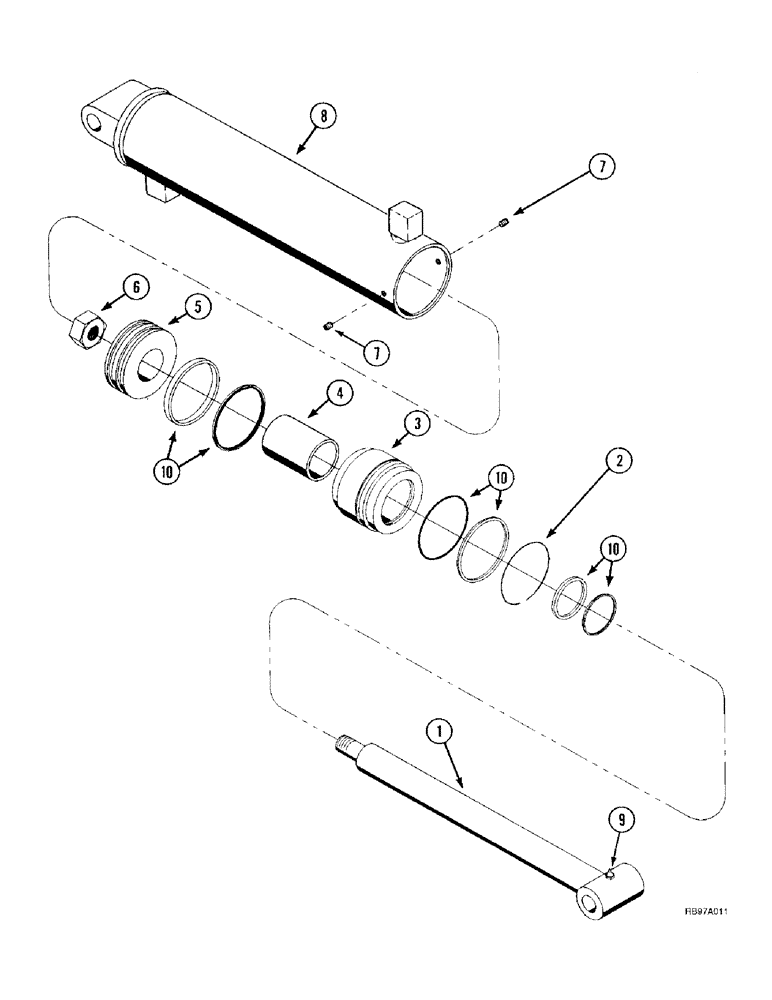

Запчасти Case IH L300 (8-48) - CYLINDER ASSEMBLY, BOOM (89 MM ID) (08) - HYDRAULICS

105063A1

CYLINDER,Double Acting, 44.45mm Rod, 547.37mm Stroke

ASSY., 89 ID x 548 mm strk, Consists of : 1-9

2шт.

1

105052A1

ROD ASSY.

PISTON

1шт.

2

1985051C1

RING

retaining

1шт.

3

105065A1

HEAD (CYLINDER)

1шт.

4

105066A1

SPACER

1шт.

5

105023A1

PISTON

cylinder

1шт.

6

131-914

NUT,1"-14

lock 1 in diameter

1шт.

7

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 x 1/4

2шт.

8

NSS

NOT SOLD SEPARAT

BODY

1шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

10

105067A1

SEAL KIT

seals

1шт.
