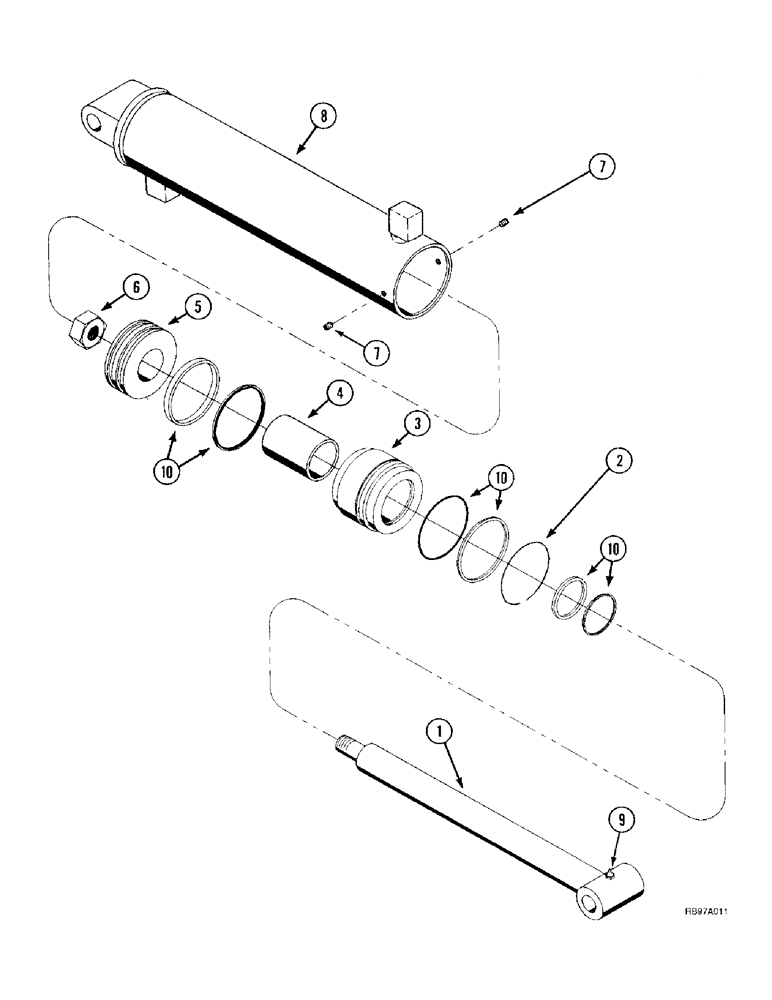

Запчасти Case IH L300 (8-48[A]) - CYLINDER ASSEMBLY, BOOM (76 MM ID) (08) - HYDRAULICS

105113A1

CYLINDER

ASSY., 76 ID x 548 mm strk, Consists of: 1-9

2шт.

1

105052A1

ROD ASSY.

PISTON

1шт.

2

1978777C1

RING

retaining

1шт.

3

105075A1

PINION CARRIER

GEAR CARRIER head, cylinder

1шт.

4

105066A1

SPACER

1шт.

5

105076A1

PISTON

cylinder

1шт.

6

131-914

NUT,1"-14

lock, 1 in diameter

1шт.

7

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 x 1/4

2шт.

8

NSS

NOT SOLD SEPARAT

BODY

1шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

10

105077A1

SEAL KIT

seals

1шт.
