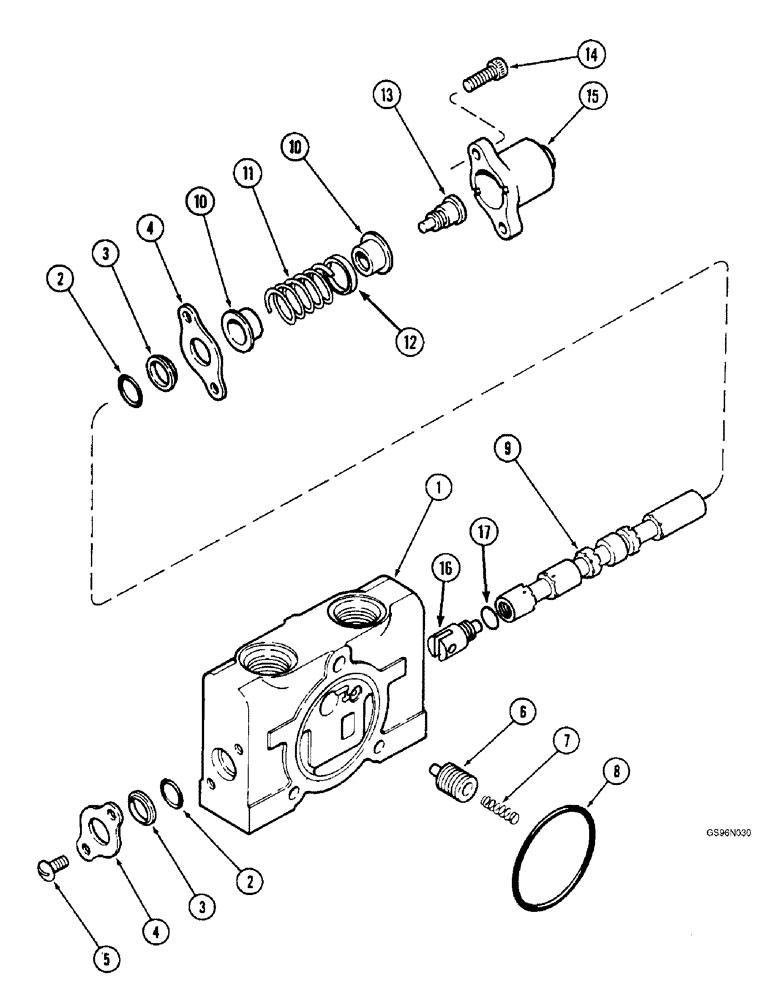

Запчасти Case IH L300 (8-42) - VALVE SECTION, BUCKET (08) - HYDRAULICS

105084A1

SPOOL

VALVE ASSY., control regenerative, Consists of: 1-17

1шт.

105088A1

VALVE BLOCK

ASSY., control nonregenerative, Not Illustrated, Consists of: 1-17

1шт.

1

NSS

NOT SOLD SEPARAT

BODY regenerative

1шт.

1

NSS

NOT SOLD SEPARAT

BODY nonregenerative, Not Illustrated

1шт.

THE MAIN DIFFERENCE BETWEEN THE REGEN. AND THE NON-REGEN. IS THE SPOOL. THE REGEN SPOOL IS A TWO PC WITH O'RING (PICTURED), WHERE THE NON-REGEN SPOOL IS ONE PC.

1шт.

2

1344740C1

O-RING,0.103" Thk x 0.549" ID, -113, 60 Duro

2шт.

3

S111870

OIL SCRAPER RING

SEAL

2шт.

4

S111865

PLATE

2шт.

5

340-1256

SCREW,Cross Pan Hd, 1/4"-20 x 3/8"

2шт.

6

1344738C1

PISTON

1шт.

7

1344737C1

SPRING

1шт.

8

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL regenerative

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL nonregenerative, Not Illustrated

1шт.

10

1344732C1

SEAT

spring

2шт.

11

1344735C1

SPRING

1шт.

12

105089A1

SPACER

1шт.

13

1344729C1

END

stop

1шт.

14

61-32512

HEX SOC SCREW,1/4 - 20 x 3/4"

2шт.

15

S111869

CAP

1шт.

16

105085A1

CLEVIS

1шт.

17

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.
