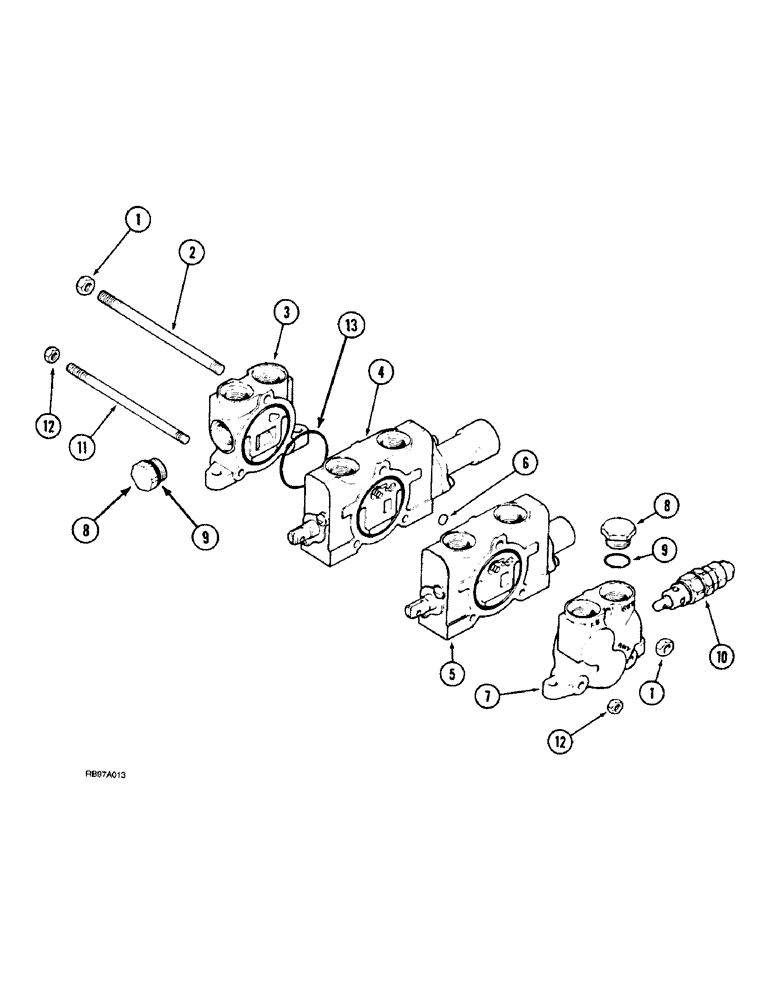

Запчасти Case IH L300 (8-36) - VALVE ASSEMBLY, LOADER CONTROL, 2 FUNCTION (08) - HYDRAULICS

105080A1

VALVE

ASSY., control, Consists of: 1-15

1шт.

1

329-116

NUT,3/8"-24, G8

2шт.

2

1344727C1

TIE-ROD,3/8" - 24 x 6 1/8"

ROD tie, 3/8 x 6-1/8

1шт.

3

105087A1

VALVE

section inlet

1шт.

4

REF

INSTRUCTION

VALVE ASSY., control boom, See Figure: 8-40

1шт.

5

REF

INSTRUCTION

VALVE ASSY., control bucket, See Figure: 8-42

1шт.

6

1344736C1

PLATE

PLATE

1шт.

7

1344744C1

OUTLET

section

1шт.

8

86512512

PLUG,7/8" - 14 ORB

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

10

1344733C1

VALVE

relief, 2500 psi

1шт.

11

1344725C1

TIE-ROD,5/16" - 18 x 6"

TIE ROD 5/16 x 6

2шт.

12

425-105

NUT,5/16"-18, G5

4шт.

13

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

3шт.

14

1344731C1

PLUG

3шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
