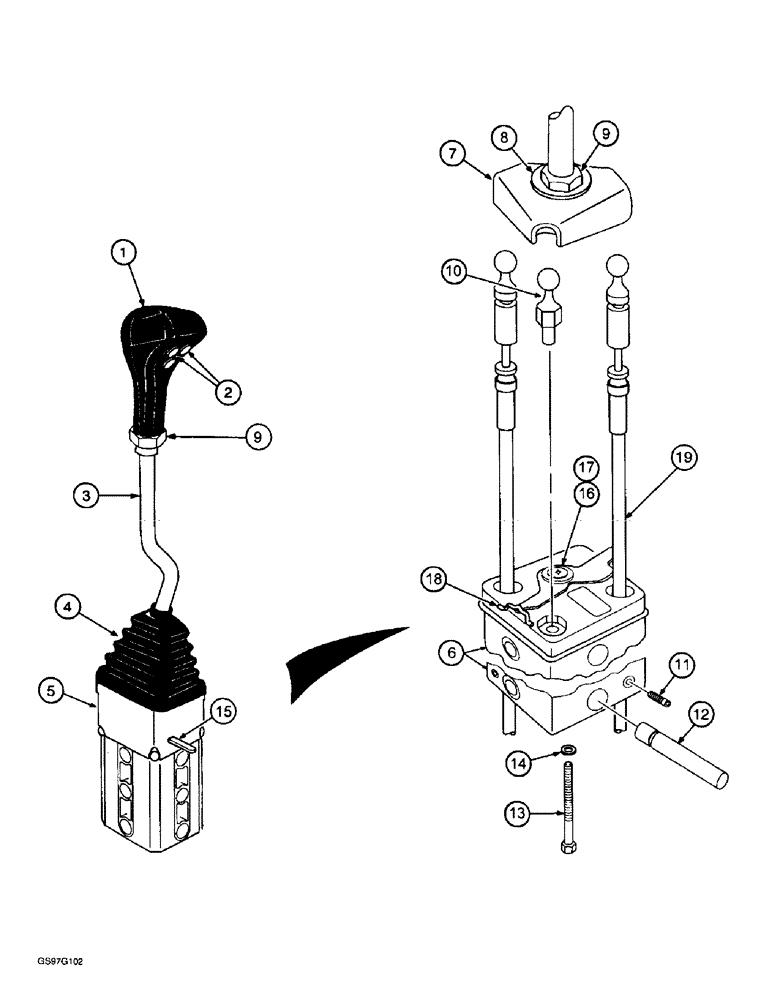

Запчасти Case IH L300 (8-24) - CONTROL ASSEMBLY, 2 FUNCTION, SYNCHROMESH TRANSMISSION (08) - HYDRAULICS

280019A1

CONTROL

Consists of: 1-19

1шт.

1

246982A1

CONTROL

HANDLE ASSY., Includes: 2

1шт.

2

253280A1

PLASTIC PLUG

2шт.

3

246992A1

LEVER

1шт.

4

253274A1

BELLOWS

BOOT

1шт.

5

253275A1

HOUSING

upper

1шт.

6

247713A1

BODY

HOUSING lower

1шт.

7

253276A1

COUPLING FLANGE

YOKE

1шт.

8

895-15014

WASHER,15.5mm ID x 30mm OD x 2.5mm Thk

15.5 x 30 x 2.5 mm

1шт.

9

829-23414

THIN NUT,Thin, M14 x 1.5, Cl 05

2шт.

10

253277A1

BALL JOINT

PIVOT

1шт.

11

877-20810

SET SCREW,Hex Skt, M8 x 10mm, Cone Pt

set, M8 x 10

2шт.

12

254286A1

TUBE,12 mm OD, 57.5 mm Length

2шт.

13

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

1шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

15

254285A1

LEVER

1шт.

16

760-34495

SELF-TAP SCREW,Pan, M4.8 x 1.6 x 9.5mm

M4.8 x 9.5

1шт.

17

495-31022

WASHER,#10

1шт.

18

258464A1

SPRING LOCK

1шт.

19

253271A1

CABLE ASSY.

2шт.
