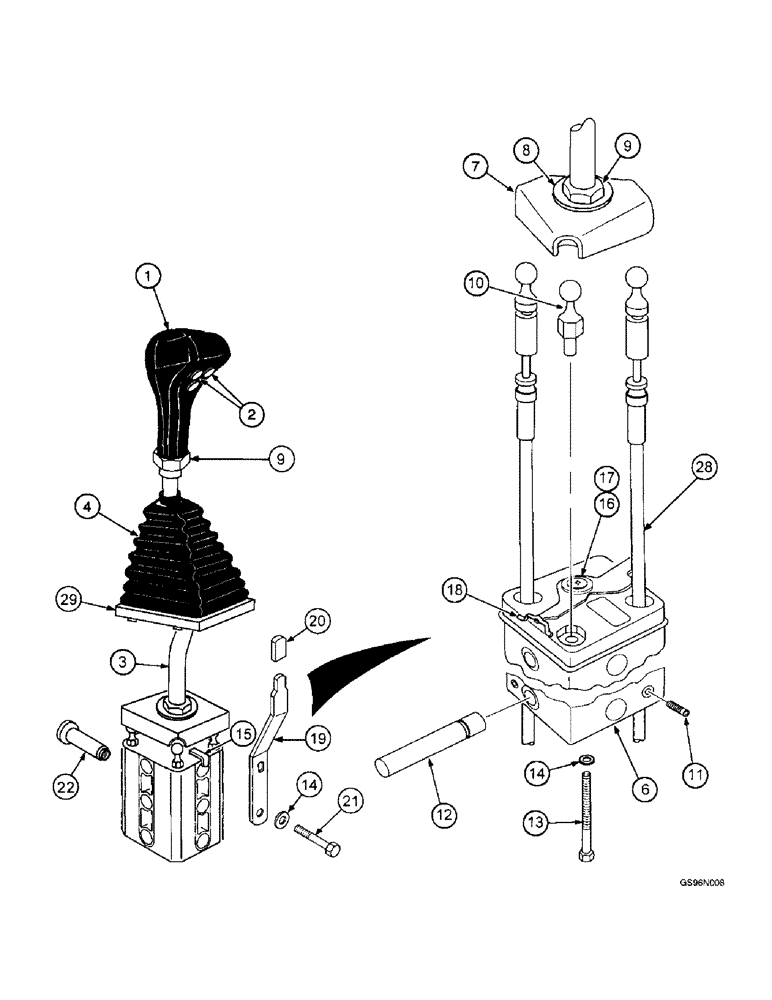

Запчасти Case IH L300 (8-20) - CONTROL ASSEMBLY, 2 FUNCTION, POWER SHIFT TRANSMISSION (08) - HYDRAULICS

254287A1

LEVER ASSY & KNOB

controller, Consists of : 1-29

1шт.

1

246982A1

CONTROL

HANDLE ASSY., Includes : 2

1шт.

2

253280A1

PLASTIC PLUG

2шт.

3

247712A2

CONTROL LEVER

1шт.

4

257604A1

BOOT

1шт.

5

253275A1

HOUSING

upper

1шт.

6

247713A1

BODY

HOUSING lower

1шт.

7

253276A1

COUPLING FLANGE

YOKE

1шт.

8

895-15014

WASHER,15.5mm ID x 30mm OD x 2.5mm Thk

15.5 x 30 x 2.5 mm

1шт.

9

829-23414

THIN NUT,Thin, M14 x 1.5, Cl 05

2шт.

10

253277A1

BALL JOINT

PIVOT

1шт.

11

877-20810

SET SCREW,Hex Skt, M8 x 10mm, Cone Pt

set, M8 x 10

2шт.

12

253279A1

SPACER

TUBE

2шт.

13

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

1шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

15

253278A1

LEVER

1шт.

16

760-34495

SELF-TAP SCREW,Pan, M4.8 x 1.6 x 9.5mm

M4.8 x 9.5

1шт.

17

495-31022

WASHER,#10

1шт.

18

258464A1

SPRING LOCK

1шт.

19

253272A1

LEVER

1шт.

20

253273A1

GRIP

1шт.

21

814-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

1шт.

22

254283A1

SUPPORT

1шт.

28

253271A1

CABLE ASSY.

2шт.

29

241536A1

SUPPORT

FRAME

1шт.
