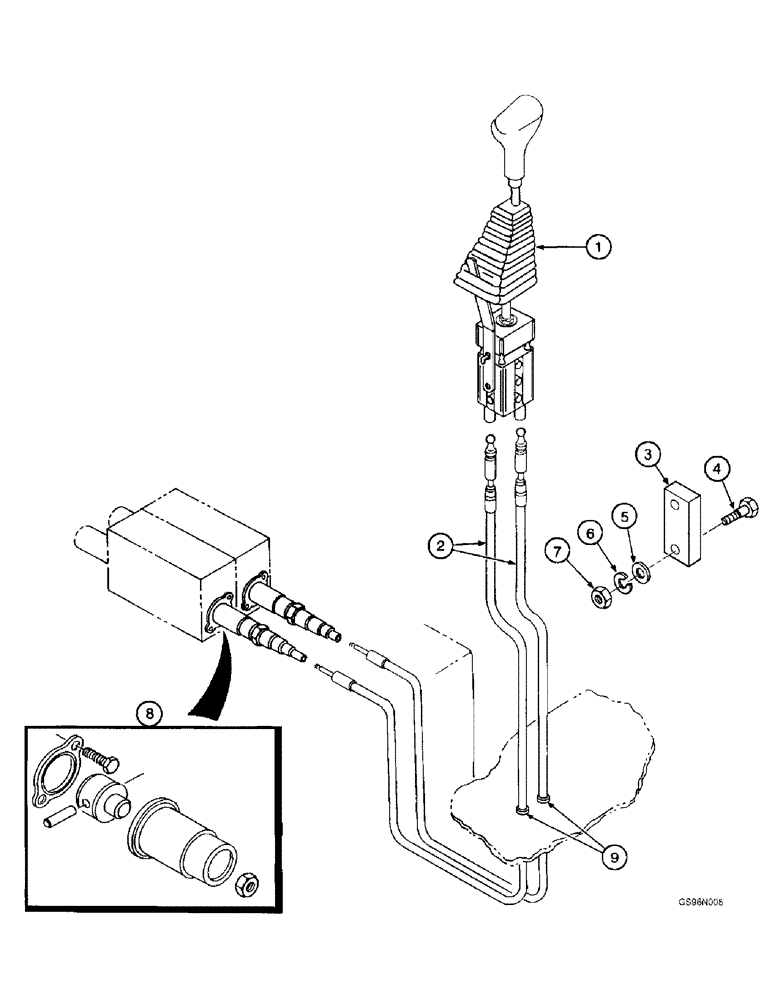

Запчасти Case IH L300 (8-18) - HYDRAULIC CONTROLS, EXTERNAL VALVE, 2 FUNCTION, POWER SHIFT TRANSMISSION (08) - HYDRAULICS

1

254287A1

LEVER ASSY & KNOB

controller, Includes: 2-6 See Figure: 8-20

1шт.

2

253271A1

CABLE ASSY.

2шт.

3

247716A1

SPACER

1шт.

4

814-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

2шт.

6

892-11008

LOCK WASHER,8mm ID

2шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

8

252798A1

SET OF PARTS

KIT adapter

2шт.

9

182045A1

GROMMET

2шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
