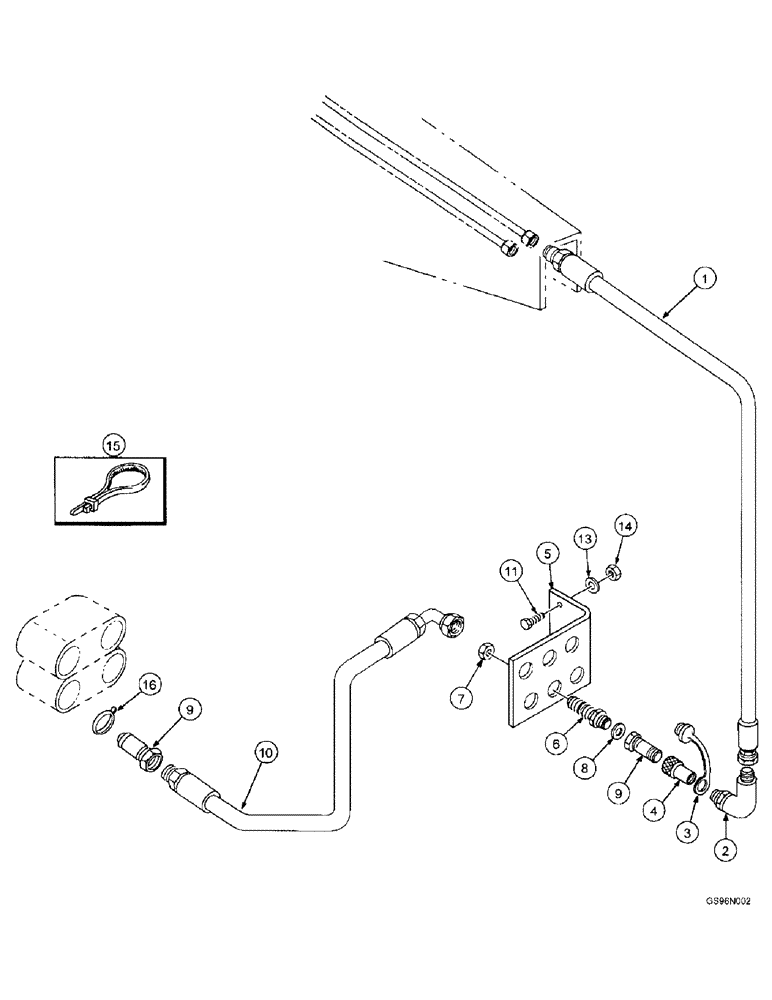

Запчасти Case IH L300 (8-14) - HYDRAULICS, MID MOUNT, 2 FUNCTION MID MOUNT (08) - HYDRAULICS

1

222663A1

HOSE

1677 mm (66 in)

4шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 7/8-14 fl x adj. Or

4шт.

3

195608A1

CAP

dust

4шт.

4

1272400C1

COUPLING

female

4шт.

5

246940A2

SUPPORT

BRACKET

1шт.

6

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT, STL BULKHD .625MJ .625MJ

4шт.

7

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

4шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

9

1272399C2

QUICK MALE COUPLING

7/8 NF, self-sealing, male

8шт.

10

222664A2

HOSE ASSY.

3404 mm (134 in)

4шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

2шт.

15

291207C1

CLAMP

STRAP, 14 inch

4шт.

16

1985078C2

SET OF PARTS

KIT indicator

1шт.
