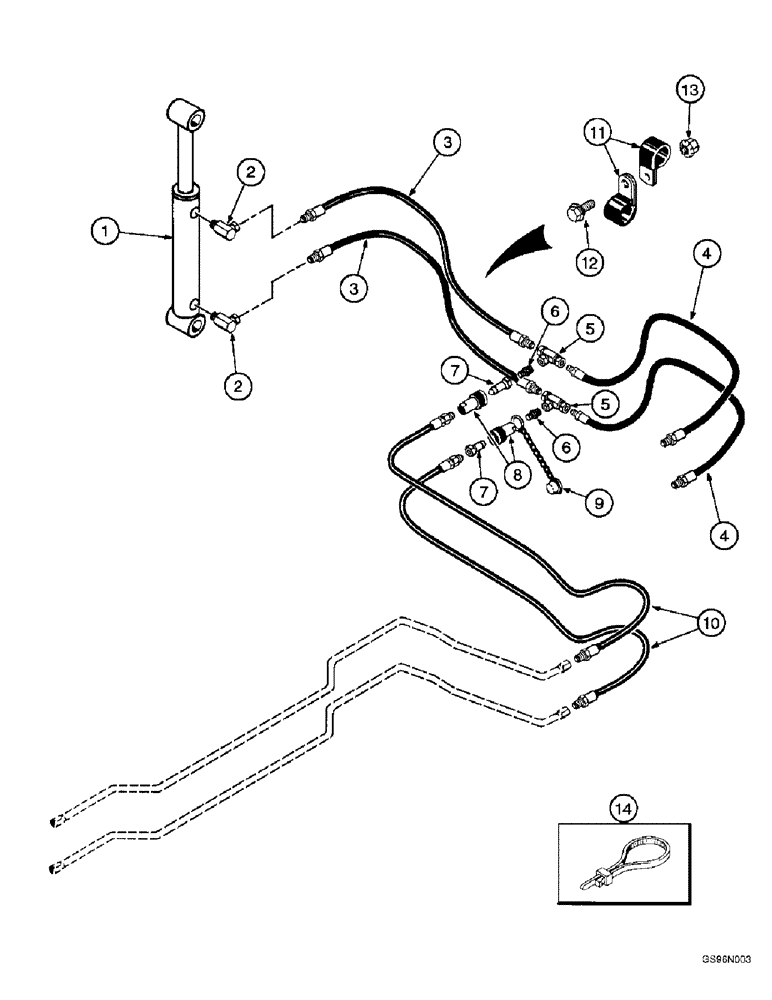

Запчасти Case IH L300 (8-10) - HYDRAULICS, GRAPPLE (08) - HYDRAULICS

1

T57744

CYLINDER

ASSY., 64 ID x 222 mm strk See Figure: 8-52

2шт.

2

218-5203

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

ELBOW, 90

4шт.

3

1985066C1

HOSE

825 mm (32-1/2 in)

2шт.

4

1985065C1

HOSE

953 mm (37-1/2 in)

2шт.

5

218-1602

UNION

TEE

2шт.

6

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

ADAPTER

2шт.

7

H49726

PUSH-PULL COUPLING

Hydr. male

2шт.

8

H49718

COUPLING

Hydr. female

2шт.

9

195608A1

CAP

dust

2шт.

10

1985067C1

HOSE

1829 mm (72 in)

2шт.

11

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

231-1446

NUT,3/8" - 16, Gr 5

2шт.

14

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

2шт.

15

1985078C2

SET OF PARTS

KIT indicator

1шт.
