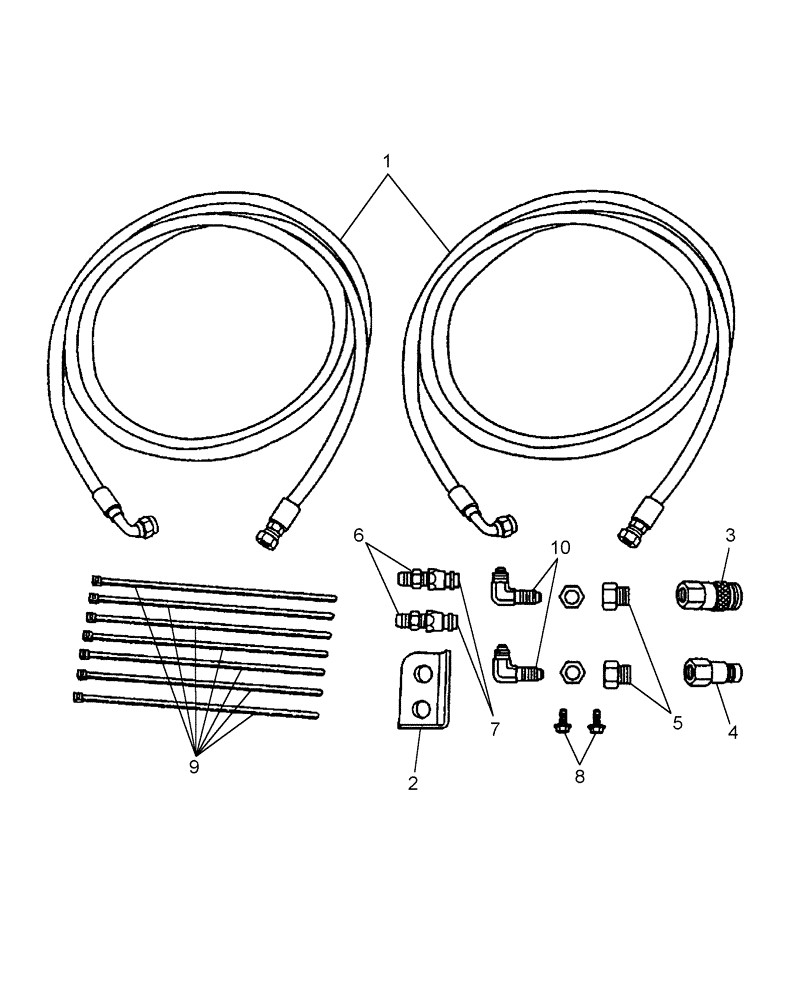

Запчасти Case IH L160 (014) - 3RD FUNCTION REMOTE HOSE KIT (35) - HYDRAULIC SYSTEMS

1

86605275

HOSE

Hose, 1/2" x 225"

2шт.

2

86603045

BRACKET

Bracket

1шт.

3

86537659

COUPLING, QUICK, FEM

Quick Disconnect Body, Female, 1.062 O-Ring

1шт.

4

86537658

QUICK MALE COUPLING

Quick Disconnect Body, Male, 1.062 O-Ring

1шт.

5

86537648

ADAPTER

Connector

2шт.

6

132341

HYD CONNECTOR,3/4" - 16 JIC x 1/2" - 14 NPT

Bulkhead, 90E-10 37

2шт.

7

9801618

QUICK MALE COUPLING,1/2" - 14

Male, 1/2"-14 NPTF

2шт.

8

570821

SELF-TAP SCREW,Hex Flng, 5/16" - 18 x 5/8"

Flg, USR, 5/16"-18 x 5/8"

2шт.

9

529070

CABLE TIE,368.3mm L

CABLE STRAP

7шт.

10

86513091

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

Connector, 8-8 37-NP

2шт.
