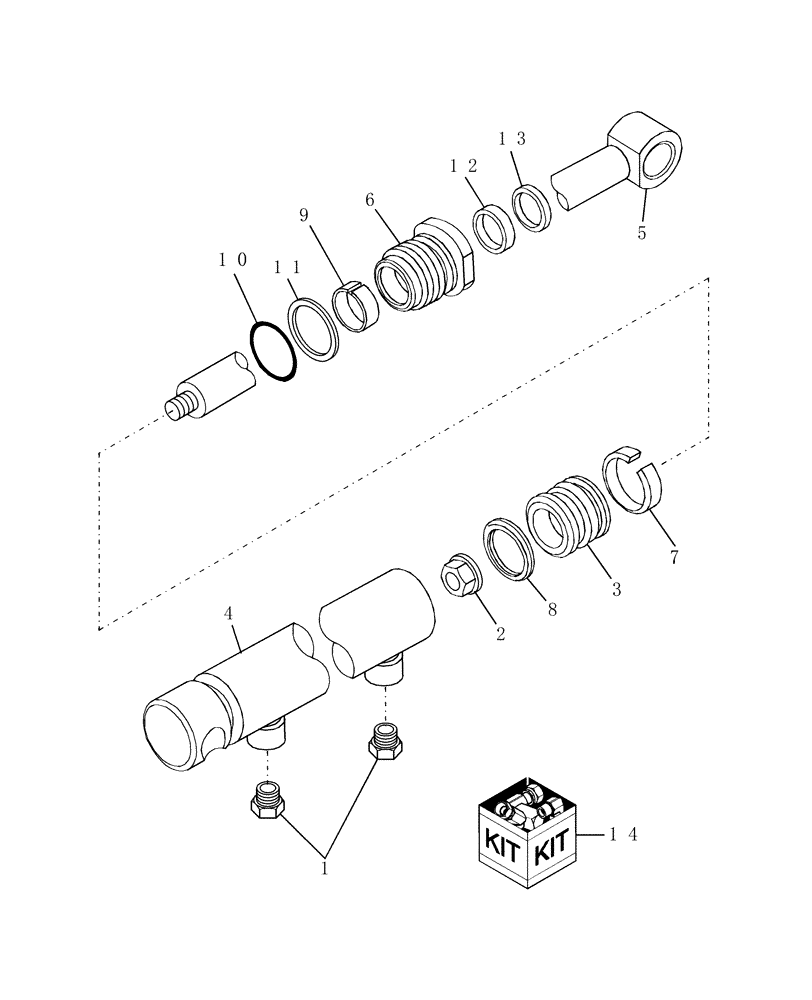

Запчасти Case IH L160 (005) - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

1

NLS

NO LONGER SERVICED

Cylinder, Bucket,(86602781) Includes: Ref. 2-14

2шт.

Replaced by 86618853 Bucket Cylinder, Refer to Fig. 005A for Detail

1шт.

2

280724

LOCK NUT,3/4" - 16

1шт.

3

80592950

PISTON

1шт.

4

86618855

BARREL

Cylinder

1шт.

5

86618856

PISTON ROD

1шт.

6

86580770

CYLINDER END CAP

1шт.

7

771705

RING

Wear, 2.004" ID x .50" Thk

1шт.

8

86553483

SEAL

3 Piece, Piston

1шт.

9

9847627

RADIATOR HOSE,2.00" ID x 13.50", SAE 20R4 CLASS D-2

Ring, Wear

1шт.

10

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

11

86565440

SEALING WASHER

Back Up

1шт.

12

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

1.250" ID x 1.500" OD

1шт.

13

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

Rod Wiper

1шт.

14

86586336

SEAL KIT

Kit, Includes Ref. 7 - 13

1шт.
