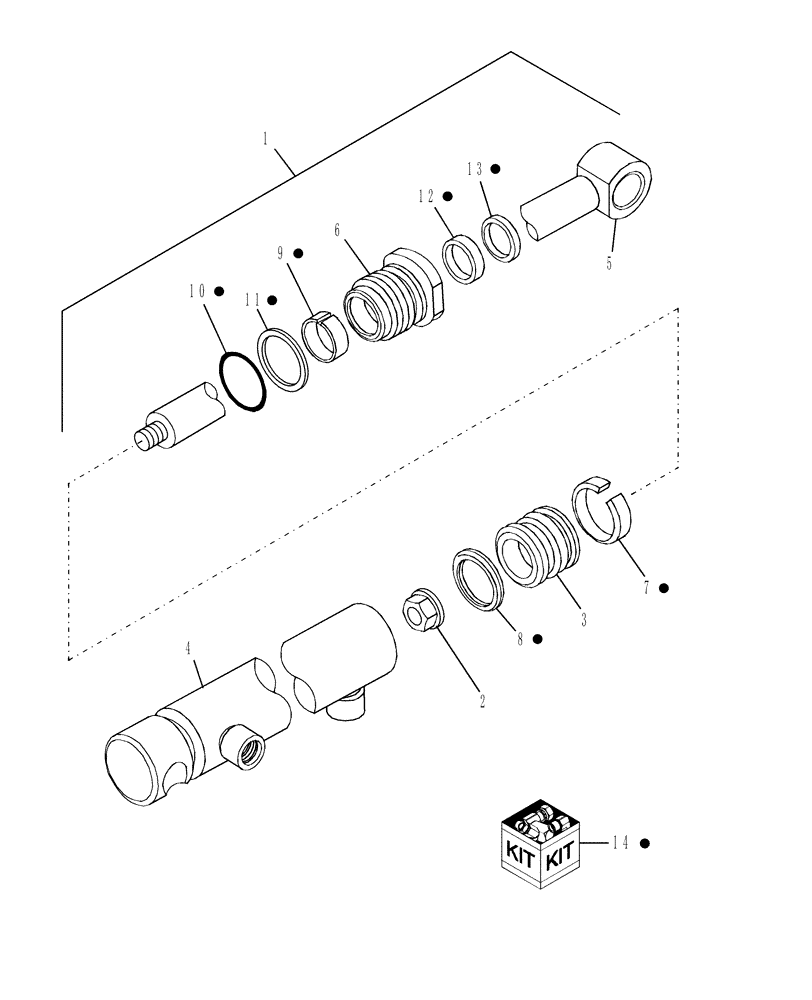

Запчасти Case IH L160 (004) - LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

NLS

NO LONGER SERVICED

Cylinder, Lift (86602782) Includes: Ref. 2-14

2шт.

Replaced by 86618854 Lift Cylinder, Refer to Fig. 005A for Detail

1шт.

2

280724

LOCK NUT,3/4" - 16

1шт.

3

592950

SPARE PART

1шт.

4

86618857

BARREL

Cylinder

1шт.

5

86618858

PISTON ROD

1шт.

6

86564980

CYLINDER HEAD

1шт.

7

771705

RING

Wear, 2.004" ID x .50" Thk

1шт.

8

86553483

SEAL

3 Piece, Piston

1шт.

9

9842390

WEAR RING,Split, 34.87mm ID x 38.94mm OD x 19.05mm Thk

Ring, Wear

1шт.

10

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

11

86565440

SEALING WASHER

Back Up

1шт.

12

9600664

SEAL,35.05mm ID x 44.2mm OD x 7.37mm Thk

1шт.

13

46886

OIL SEAL,34.92mm ID x 44.76mm OD x 5.13mm Thk

1шт.

14

86564981

SEAL KIT

Kit, Includes Ref. 7 thru 13

1шт.
