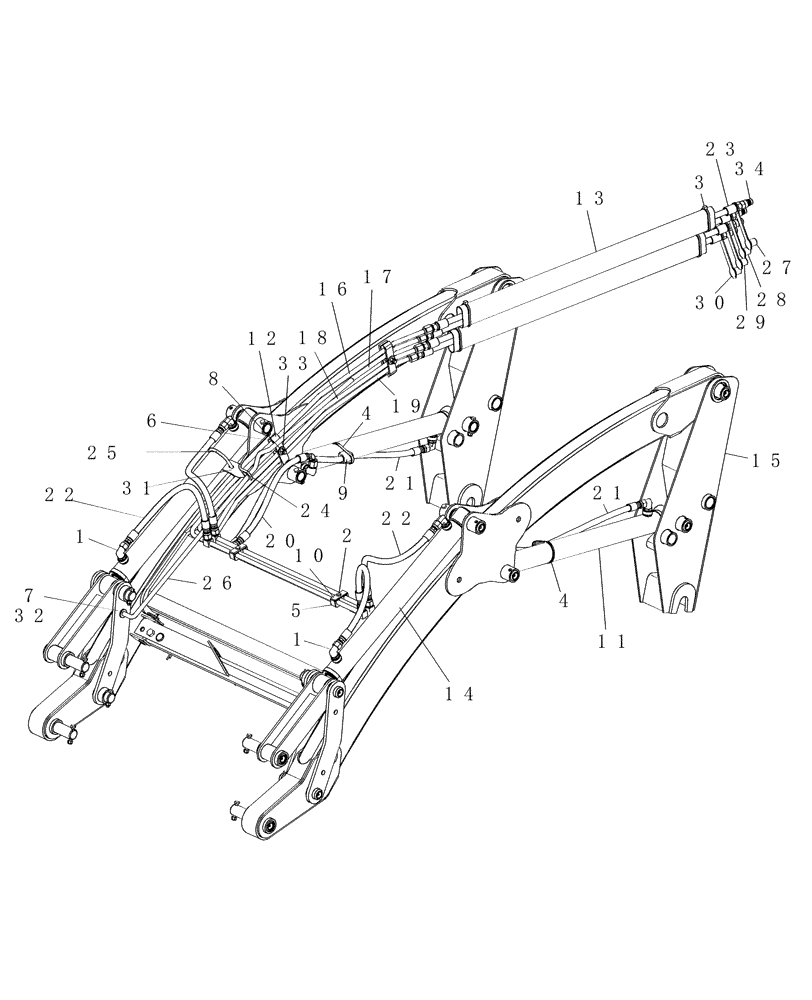

Запчасти Case IH L160 (003) - HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

8шт.

2

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

3

323597

CABLE TIE,165mm OAL x 9mm Thk

CABLE STRAP Cable Tie

4шт.

4

82012728

COLLAR,50mm - 65mm, Worm Gear

M50-70

2шт.

5

625822

CLAMP,1/2" Tube

1/2" Tube

4шт.

6

765394

PAD,19.8mm ID x 31.8mm W x 101.6mm L

2шт.

7

495-21056

WASHER,1/2"

1шт.

8

495-21044

WASHER,3/8"

2шт.

9

853965

SEAT CUSHION

Cushion

2шт.

10

86509354

PLATE,9/32" ID x 3/4" W x 2" L

Tab

4шт.

11

86618854

CYLINDER

Lift

2шт.

12

86571694

CLAMP

2шт.

13

794839

PROTECTING COVER

Protective

2шт.

14

86618853

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 484mm Stroke

Bucket

2шт.

15

NS

NOT SERVICED

Loader Assy.

1шт.

16

86591831

HYD TUBE

1шт.

17

86591832

HYD TUBE

1шт.

18

86591833

HYD TUBE

1шт.

19

86591834

HYD TUBE

1шт.

20

86594265

HOSE

1шт.

21

86594266

HYDRAULIC HOSE,0.38" ID x 40.00", SAE 100R17

1шт.

22

86594269

HYDRAULIC HOSE,9.53mm ID x 438.15mm L, SAE 100R17

1шт.

23

86594270

HYDRAULIC HOSE,12.7mm ID x 1143mm L, SAE 100R17

1шт.

24

86597302

BRACKET

1шт.

25

86597407

U-BOLT

5/16"-18 x 3"

1шт.

26

86597425

ROD

Bucket Level Indicator

1шт.

27

86597750

DUST CAP,23mm OD x 255mm L

Dust, Red

1шт.

28

86597751

DUST CAP,23mm OD x 255mm L

Dust, Blue

1шт.

29

86597752

DUST CAP,23mm OD x 255mm L

Dust, Green

1шт.

30

86597753

DUST CAP,23mm OD x 255mm L

Dust, Yellow

1шт.

31

280736

NUT,5/16"-18, GC

2шт.

32

394818

COTTER PIN,M5 x 25

1шт.

33

232-4146

NUT,3/8"-16, GC

2шт.

34

9846344

QUICK MALE COUPLING,3/8" NPTF

Nipple, Hydraulic, 3/8", NPTF

4шт.
