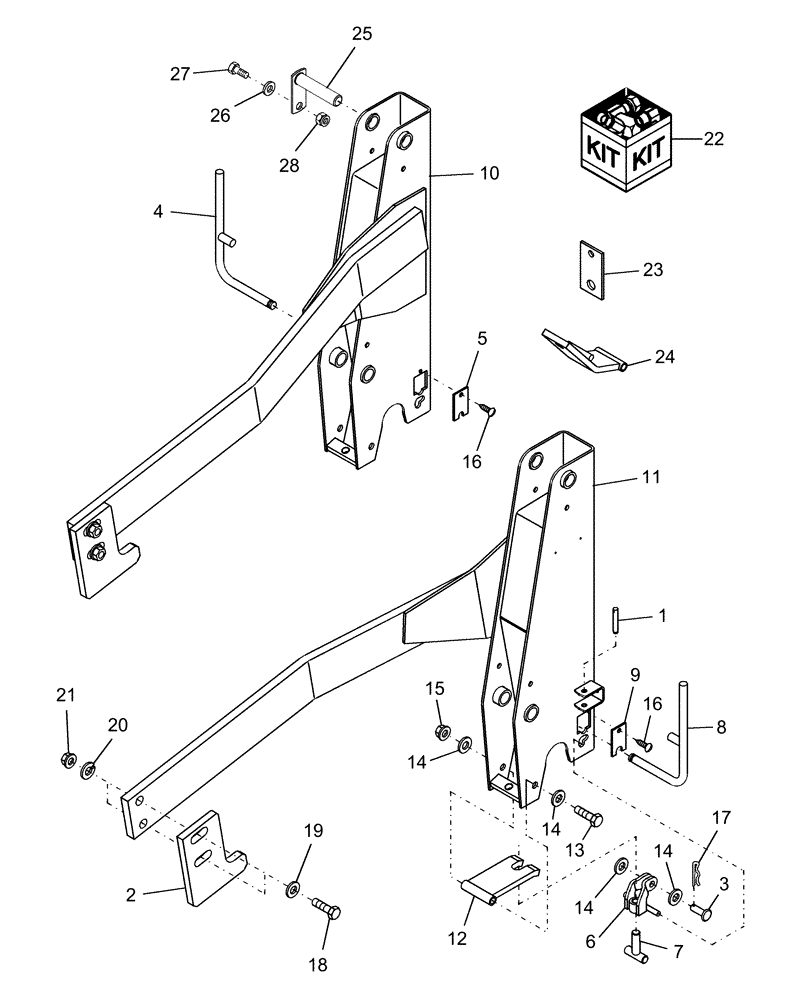

Запчасти Case IH L130 (002) - FRAME, MOUNTS, RH & LH SIDE (82) - FRONT LOADER & BUCKET

1

86017630

HITCH PIN,9.53mm OD x 50.55mm L

2шт.

2

86614999

BRACKET

Hook, Mount

2шт.

3

86533413

PIN,12.7mm OD x 38.1mm L

2шт.

4

86543985

HANDLE

R.H.

1шт.

5

86543989

PLATE

2шт.

6

86554913

CONNECTING LINK

Over Center

2шт.

7

86554916

BRACKET

"T"

2шт.

8

86554966

HANDLE

L.H.

1шт.

9

86554968

LOCKING TAB

Tab

2шт.

10

86615001

FRAME

Mount, R.H.

1шт.

11

86615000

FRAME

Mount, L.H.

1шт.

12

86615002

LATCH

2шт.

13

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

2шт.

14

495-11053

WASHER,1/2", SAE

8шт.

15

232-4148

NUT,1/2"-13, GC

2шт.

16

570821

SELF-TAP SCREW,Hex Flng, 5/16" - 18 x 5/8"

Flg, USR, 5/16"-18 x 5/8"

4шт.

17

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

18

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Cap, HH, G5, 3/4"-10 x 3"

4шт.

19

9706679

WASHER,0.8" ID x 1.25" OD x 0.14" Thk

4шт.

20

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

21

425-1012

NUT,3/4"-10, G5

4шт.

22

86615003

KIT

Kit, Bolt on Latch, Over Center

1шт.

23

86593757

LOCKING TAB

Tab

4шт.

24

86615058

LATCH

2шт.

25

86526802

PIN

Pin

4шт.

26

626698

SPACER

4шт.

27

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

4шт.

28

88902

NUT,3/8"-16

4шт.
