Запчасти Case IH L130 (001) - MAIN FRAME & HYDRAULICS (82) - FRONT LOADER & BUCKET

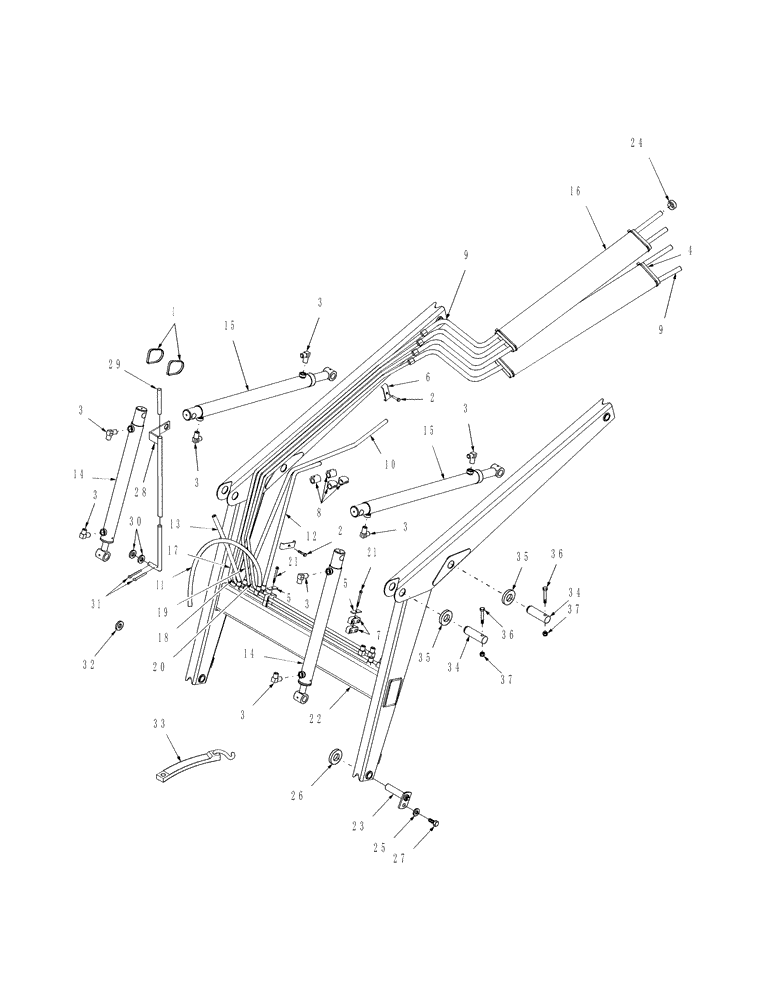

Схема запчастей Case IH L130 - (001) - MAIN FRAME & HYDRAULICS (82) - FRONT LOADER & BUCKET
3
3
26
5
33
31
34
21
36
35
2
14
3
6
23
1
28
11
17
30
13
20
35
16
32
37
34
22
8
12
29
37
18
24
9
25
4
19
14
27
5
36
3
15
10
21
3
3
9
7
15
3
3
2

Артикул

Название

Примечание

Количество

1

82012728

COLLAR,50mm - 65mm, Worm Gear

2шт.

2

88825

SELF-TAP SCREW,Hex, 5/16" - 12 x 1-1/4"

2шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

8шт.

4

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

5

86509354

PLATE,9/32" ID x 3/4" W x 2" L

Tab

2шт.

6

620447

CHANNEL

Channel

2шт.

7

625822

CLAMP,1/2" Tube

1/2" Tube

4шт.

8

853965

SEAT CUSHION

Cushion

2шт.

9

86591224

HOSE,9.53mm ID x 1778mm L, SAE 100R1

4шт.

10

9600467

FLEXIBLE HOSE,9.53mm ID x 1371.6mm L, SAE 100R1

To Lift Cylinder, Rod End, 3/4"-16 Female Swivel Flare

2шт.

11

9600468

HOSE,9.53mm ID x 609.6mm L, SAE 100R1

To Bucket Cylinder, Rod End

2шт.

12

9600469

HOSE,9.53mm ID x 1016mm L, SAE 100R1

To Lift Cylinder, Base End

2шт.

13

9600470

FLEXIBLE HOSE,9.53mm ID x 406.4mm L, SAE 100R1

To Bucket Cylinder, Base End, 16" Lg

2шт.

14

86615006

CYLINDER,Double Acting, 34.92mm Rod, 587.2mm Stroke

Bucket

2шт.

15

86615007

CYLINDER

Lift

2шт.

15

86608110R

REMAN-HYD CYLINDER

L130 CASE IH FRONT LOADER, Lift, Reman for New PN 86615007

2шт.

15

86608110C

CORE-HYD CYLINDER

Return Number

2шт.

16

9600709

SLEEVE

Protective

2шт.

17

86524752

TUBE,12.70 mm DIA x 1301, 863.7 mm L

To Bucket Cylinder, Base End

1шт.

18

86524753

TUBE,12.70 mm DIA x 1198, 893.4 mm L

To Lift Cylinder, Rod End

1шт.

19

86524754

TUBE,12.70 mm DIA x 1250, 803.7 mm L

To Bucket Cylinder, Rod End

1шт.

20

86524755

TUBE,12.70 mm DIA x 1150, 833.7 mm L

To Lift Cylinder, Base End

1шт.

21

86533305

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 2 1/2"

Self-Tapping, HWH, 1/4" x 2-1/2"

2шт.

22

86614997

BOOM

1шт.

23

86540897

PIN

4шт.

24

86597752

DUST CAP,23mm OD x 255mm L

Dust, Green

1шт.

24

86597751

DUST CAP,23mm OD x 255mm L

Dust, Blue

1шт.

24

86597753

DUST CAP,23mm OD x 255mm L

Dust, Yellow

1шт.

24

86597750

DUST CAP,23mm OD x 255mm L

Dust, Red

1шт.

25

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

4шт.

26

9706679

WASHER,0.8" ID x 1.25" OD x 0.14" Thk

1шт.

27

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

28

86614998

TUBE,424.00 mm L

Guide

1шт.

29

9600334

ROD

Indicator

1шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

31

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

32

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

18шт.

33

86518682

FASTENER

1шт.

34

9600310

PIN

1"x4-1/2"

4шт.

35

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

1шт.

36

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

37

280736

NUT,5/16"-18, GC

4шт.

38

9846344

QUICK MALE COUPLING,3/8" NPTF

Nipple, Hydraulic, 45 Degree, 3/8" NPTF

4шт.

Выбрано товаров: 43
