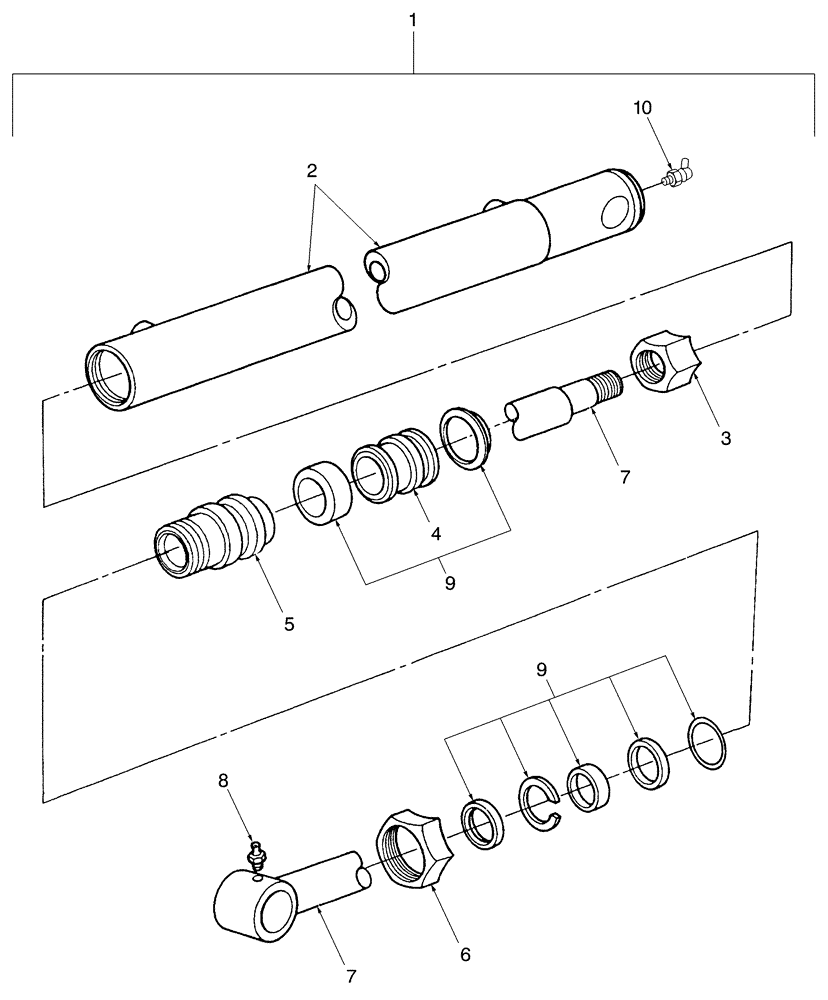

Запчасти Case IH L130 (005) - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

1

86618847

CYLINDER

Bucket, 1-3/4" Dia. With Spanner Wrench End Caps Includes: Ref. 2 thru 9

2шт.

2

9600660

CYLINDER,44.45mm Bore Dia

Tube

1шт.

3

280724

LOCK NUT,3/4" - 16

1шт.

4

9620241

PISTON

1шт.

5

9616371

CYLINDER HEAD

1шт.

6

573594

NUT

Stake, 1-1/2"-16

1шт.

Not Illustrated

1шт.

7

86618848

ROD

Rod 1" Dia.

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

9

9600671

REPAIR KIT

Cylinder Repair. Components of Kits Not Serviced Separately

1шт.

10

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.
