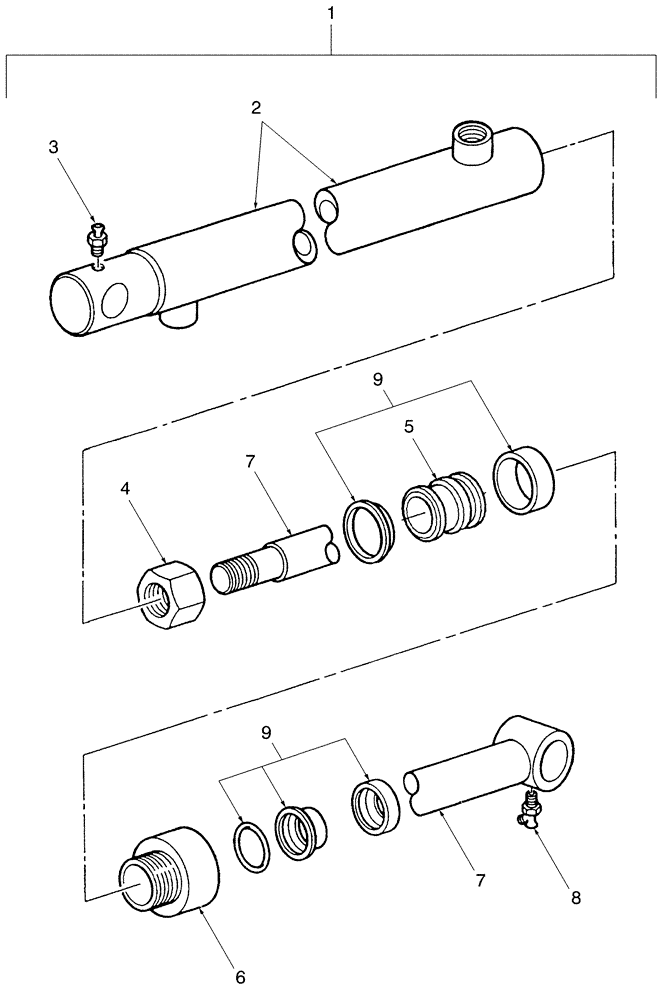

Запчасти Case IH L130 (004) - LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

NLS

NO LONGER SERVICED

Cylinder Assy., Lift, 1-3/4" Dia. (9600655) Includes: Ref. 1 thru 8

2шт.

Replaced by 86615006 Lift Cylinder, Refer Fig. 06A for Detail

1шт.

2

9600669

CYLINDER,44.45mm Bore Dia

Lift, 1-3/4" Dia. Includes: Ref. 2 thru 9

2шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

9620241

PISTON

1шт.

6

9600668

CYLINDER HEAD

1шт.

7

9600666

ROD

Rod, 1-3/8" Dia.

1шт.

8

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

9

9600670

REPAIR KIT

Cylinder Repair. Components Not Serviced Separately

1шт.
